Rincian Produk
Tempat asal: Cina
Nama merek: Tankii
Sertifikasi: ISO 9001
Nomor model: Kabel termokopel
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: Dapat dinegosiasikan
Harga: Negotiation
Kemasan rincian: 5000 m / kumparan, 2000 m / kumparan, customzied
Waktu pengiriman: 5-30days
Syarat-syarat pembayaran: T/T, Western Union
Menyediakan kemampuan: 150000m / bulan
Paket: |
Gulungan |
Suhu: |
customzied |
Standar: |
ANSI |
Tipe: |
K |
Isolasi: |
PTFE / PVC / FIBERGLASS |
Sertifikasi: |
ISO 9001 |
Warna: |
KUNING DAN MERAH |
Paket: |
Gulungan |
Suhu: |
customzied |
Standar: |
ANSI |
Tipe: |
K |
Isolasi: |
PTFE / PVC / FIBERGLASS |
Sertifikasi: |
ISO 9001 |
Warna: |
KUNING DAN MERAH |

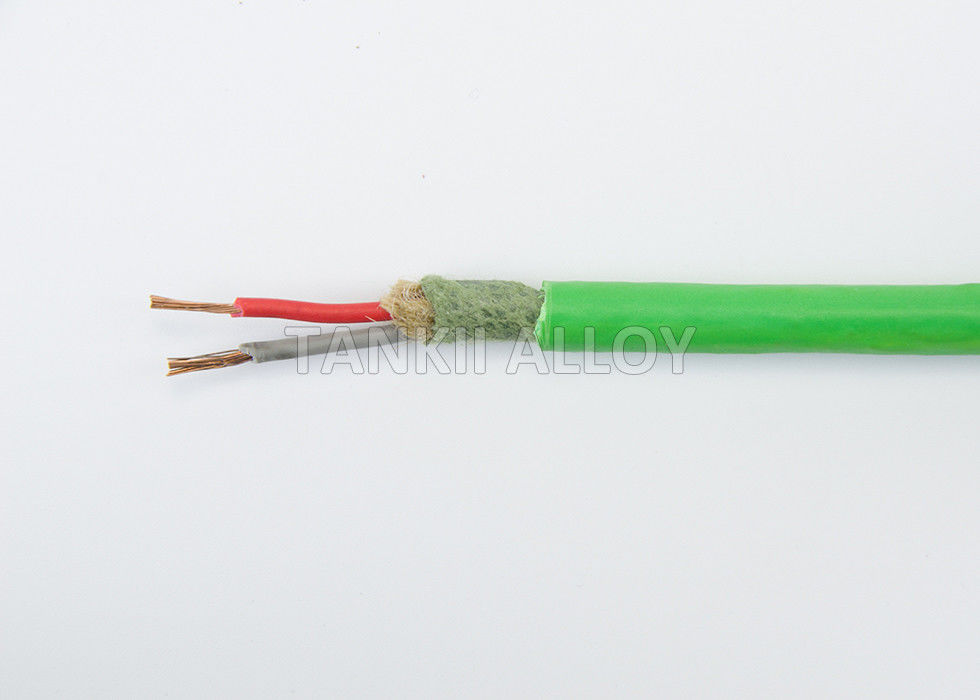

Kabel multicore JX kawat termokopel 7 * 0.2mm PFA FEP PVC kawat termokopel
The thermocouple compensation cables can also be termed as instrumentation cables, since they are used for process temperature measurement. Kabel kompensasi termokopel juga dapat disebut sebagai kabel instrumentasi, karena mereka digunakan untuk pengukuran suhu proses. The construction is similar to pair instrumentation cable but the conductor material is different. Konstruksi mirip dengan kabel instrumentasi berpasangan tetapi bahan konduktor berbeda. Thermocouples are used in processes to sense temperature and is connected to the pyrometers for indication and control. Termokopel digunakan dalam proses untuk merasakan suhu dan terhubung ke pirometer untuk indikasi dan kontrol. The thermocouple and pyrometer are electrically conducted by thermocouple extension cables / thermocouple compensating cables. Termokopel dan pirometer dilakukan secara elektrik dengan kabel ekstensi termokopel / kabel kompensasi termokopel. The conductors used for these thermocouple cables are required to have similar thermo-electric (emf) properties as that of the thermocouple used for sensing the temperature. Konduktor yang digunakan untuk kabel termokopel ini diharuskan memiliki sifat termo-listrik (ggl) yang sama dengan termokopel yang digunakan untuk merasakan suhu.
Kelas: | Kelas Ekstensi atau Kelas Thermocuple |
temperature range, deg. kisaran suhu, deg. c c | -50 ... +400 |
jenis coductor: | K, J, T, E, N, S, R, KX, JX, TX, EX, NX, SX, RX |
jumlah konduktor: | 1,2,3,4,6 |
Jenis konduktor | Untai atau Padat |
bagian luas setiap inti, mm2 (Ukuran Konduktor AWG) | 20, 24, 30, 32,36,40 |
bahan isolasi: | fiberglass, PTFE, PTFE, PVC, silikon, kapton, dll |
bahan jaket: | fiberglass, PTFE, PTFE, PVC, silikon, kapton, dll |
bahan perisai: | SSB berarti Jalinan Stainless Steel (CUB berarti Jalinan Tembaga Kaleng) |
warna: | ANSI, IEC, dll |
jumlah dan panjang kumparan, m (ft) | 10 * 100 m, 5 * 200 m, 2 * 500 m, 1 * 1000 m, 3 * 1000 kaki, 1 * 2000 kaki, |
• Pemanasan - Pembakar gas untuk oven
• Pendinginan - Freezer
• Perlindungan mesin - Temperatur dan suhu permukaan
• Kontrol suhu tinggi - Pengecoran besi
