Nickel 201 Alloy Wire UNS N02201 ASTM B160 B162

Name: Nickel 201 Alloy Wire UNS N02201 ASTM B160 B162
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Nikel 200
Price: 37.00 USD
Availability: InStock

Rincian Produk

Tempat asal: Cina

Nama merek: Tankii

Sertifikasi: -

Nomor model: Nikel 200

Dokumen: Tankii Alloy Catalog.pdf

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 20kg

Harga: 35-40USD/Kg

Kemasan rincian: KASUS

Waktu pengiriman: 10-15 hari

Syarat-syarat pembayaran: T/t

Menyediakan kemampuan: 50000kg/Bulan

Dapatkan Harga Terbaik

Hubungi sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                            Nickel 201 alloy wire UNS N02201, ASTM B160 nickel alloy wire, copper nickel alloy wire B162


Kapasitas produksi:	50000kg/Bulan	Moq:	20kgs
Spesifikasi:	Nikel 201	Asal:	Cina
Jenis:	Superalloy Nickel Base

Kapasitas produksi:	50000kg/Bulan
Moq:	20kgs
Spesifikasi:	Nikel 201
Asal:	Cina
Jenis:	Superalloy Nickel Base

Deskripsi

Nickel 201 Alloy Wire UNS N02201 ASTM B160 B162

Product Specifications

Attribute	Value
Production Capacity	50000kg/Month
MOQ	20kgs
Specification	Nickel 201
Origin	China
Type	Nickel base superalloy

Nickel 200/201 Alloy Overview

Nickel Alloy 201 (UNS N02201) is a commercially pure wrought nickel with excellent mechanical properties and superior resistance to many corrosive agents. The low carbon content (0.02% max) makes Nickel 201 particularly suitable for high-temperature applications above 315°C.

Key Applications

Food processing equipment
Chemical shipping drums and piping
Caustic handling equipment
Electronic components
Aerospace and missile components
Magnetostrictive devices
Chemical process industry reactors and heat exchangers
Pharmaceutical industry reactors and dryers
Flue gas desulfurization systems

Standards Compliance

Chemical Composition

Weight%	Ni	Cu	Fe	Mn	C	Si	S
Nickel Alloy 200	99.0 min	0.25 max	0.40 max	0.35 max	0.15 max	0.35 max	0.01 max
Nickel Alloy 201	99.0 min	0.25 max	0.40 max	0.35 max	0.02 max	0.35 max	0.01 max

Mechanical Properties

Material	Tensile Strength	Yield Strength (0.2% Offset)	Elongation in 2" (%)	Hardness
Nickel 200	55-75 ksi 380-520 MPa	15-30 ksi 105-210 MPa	55-40	90-120 Brinnell 45-70 Rockwell B
Nickel 201	55-75 ksi 380-520 MPa	15-30 ksi 105-210 MPa	55-40	90-120 Brinnell 45-70 Rockwell B

Available Sizes and Specifications

Product Form	Dimensions
Nickel plate	Thickness: 0.3mm - 150.0mm Width: 1000mm - 3000mm
Nickel strip/foil	Thickness: 0.02mm - 16.0mm Width: 5mm - 3000mm
Nickel coil	Thickness: 0.3mm - 16.0mm Width: 1000mm - 3000mm
Nickel pipe	OD: 6mm - 1219mm Thickness: 0.5mm - 100mm
Nickel capillary pipe	OD: 0.5mm - 6.0mm Thickness: 0.05mm - 2.0mm
Nickel bar	Diameter: Ф4mm - Ф600mm
Nickel wire rod	Diameter: Ф0.01mm - Ф6mm

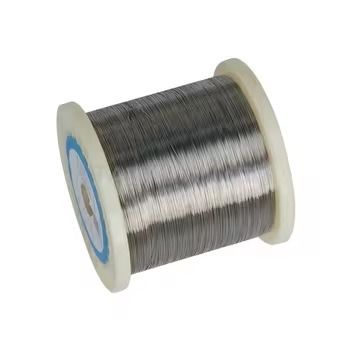

Product Images
