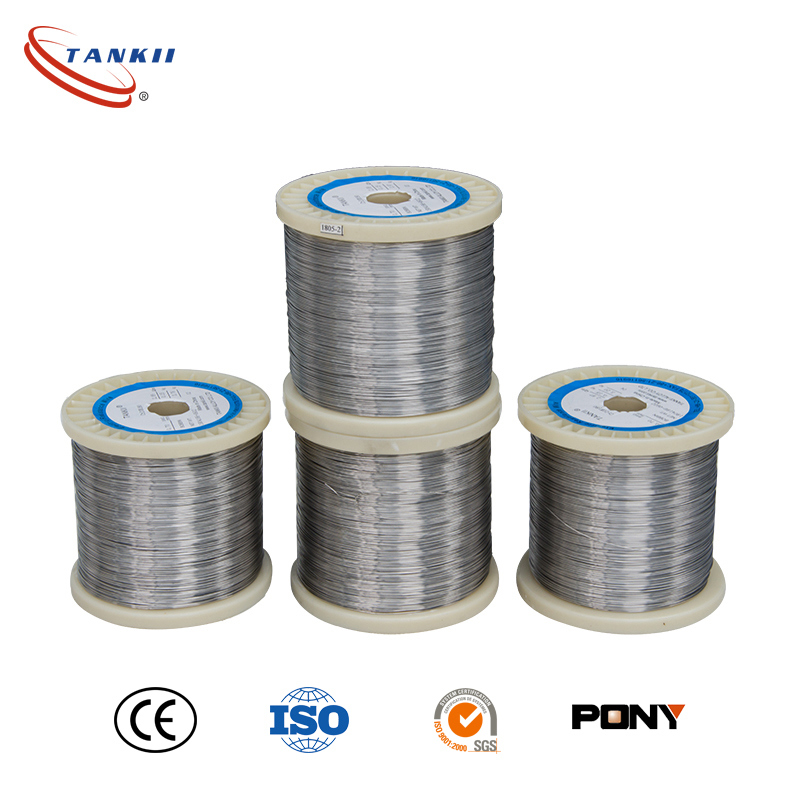

High Quality Copper Nicekel Alloy Wire CuNi44 NC050

Name: High Quality Copper Nicekel Alloy Wire CuNi44 NC050
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Cuni44
Price: 35.00 USD
Availability: InStock

Rincian Produk

Tempat asal: CINA

Nama merek: Tankii

Sertifikasi: ISO9001

Nomor model: Cuni44

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 10kg

Harga: dapat dinegosiasikan

Kemasan rincian: Kasing kayu

Waktu pengiriman: 15-25 hari

Syarat-syarat pembayaran: T/T, Western Union

Menyediakan kemampuan: 100 ton per tahun

Dapatkan Harga Terbaik

Hubungi sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:

Model no.:	Cuni44	Standar:	GB/ASTM/JIS/BIS/DIN
Permukaan:	Terang	Paket transportasi:	Kertas Tahan Air, Kotak Kayu
Warna:	Putih perak	Mencicipi:	Pesanan kecil diterima
Kepadatan:	8.9 (G/CM3)	Spesifikasi:	RoHS, SGS, ISO 9001:2008

Model no.:	Cuni44
Standar:	GB/ASTM/JIS/BIS/DIN
Permukaan:	Terang
Paket transportasi:	Kertas Tahan Air, Kotak Kayu
Warna:	Putih perak
Mencicipi:	Pesanan kecil diterima
Kepadatan:	8.9 (G/CM3)
Spesifikasi:	RoHS, SGS, ISO 9001:2008

Deskripsi

High Quality Copper Nicekel Alloy Wire CuNi44 NC050

Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
44	1%	0.5	-	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	400ºC
Resisivity at 20ºC	0.49±5%ohm mm2/m
Density	8.9 g/cm3
Thermal Conductivity	-6(Max)
Melting Point	1280ºC
Tensile Strength,N/mm2 Annealed,Soft	340~535 Mpa
Tensile Strength,N/mm3 Cold Rolled	680~1070 Mpa
Elongation(anneal)	25%(Min)
Elongation(cold rolled)	≥Min)2%(Min)
EMF vs Cu, μV/ºC (0~100ºC)	-43
Micrographic Structure	austenite
Magnetic Property	Non

main specifications and main technical parameter

main property type		NC003 Cuni1	NC005 CuNI2	NC010 CuNI6	NC012 CuNi8	NC015 CuNI10	NC025 CuNi19	NC030 CuNi23	NC035 CuNi30	NC040 CuNi34	NC050 CuNI44
main chemical composition	Ni	1	2	6	8	10	19	23	30	34	44
	MN	/	/	/	/	/	0.5	0.5	1.0	1.0	1.0
	CU	rest	rest	rest	rest	rest	rest	rest	rest	rest	rest
max working temperature		/	200	220	250	250	300	300	350	350	400
density g/cm3		8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9
resistivity at 20 °c		0.03 ±10%	0.05 ±10%	0.10 ±10%	0.12 ±10%	0.15 ±10%	0.25 ±5%	0.30 ±5%	0.35 ±5%	0.40 ±5%	0.49 ±5%
temperature coefficient of resistance		<100	<120	<60	<57	<50	<25	<16	<10	-0	<-6
tensile strength mpa		>210	>220	>250	>270	>290	>340	>350	>400	>400	>420
elongation		>25	>25	>25	>25	>25	>25	>25	>25	>25	>25
melting point °c		1085	1090	1095	1097	1100	1135	1150	1170	1180	1280
coefficient of conductivity		145	130	92	75	59	38	33	27	25	23
