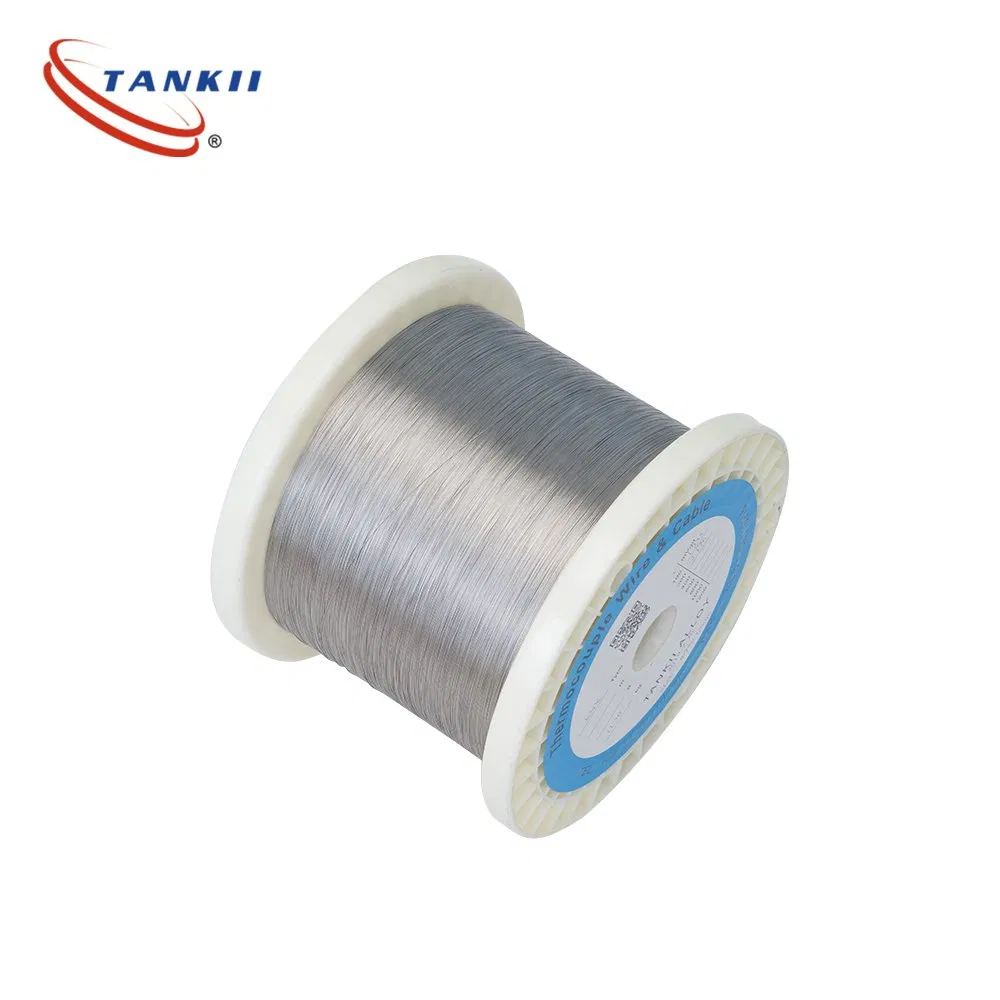

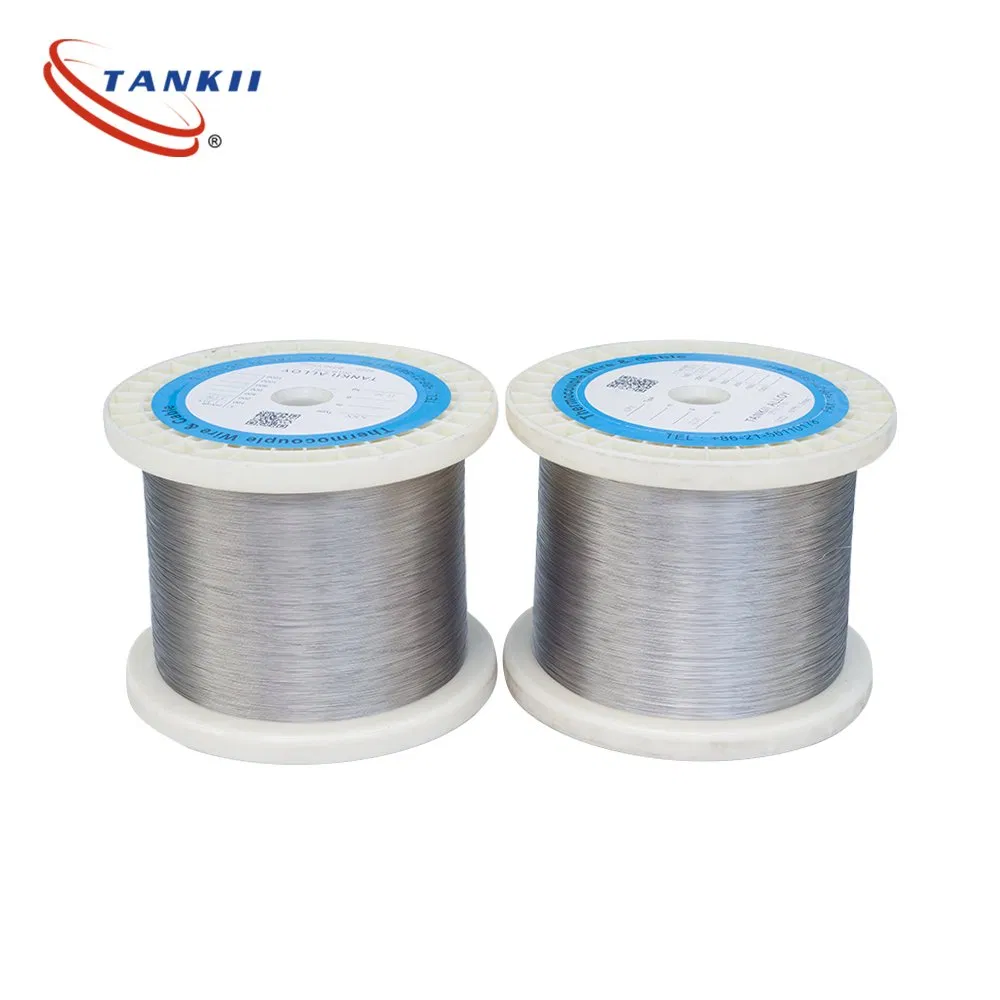

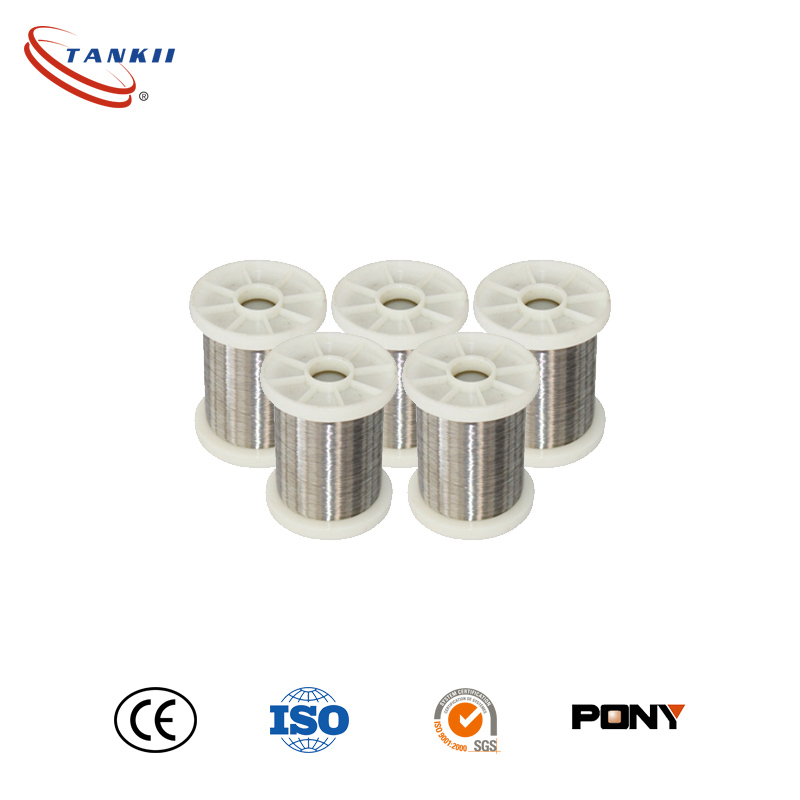

Nichrome Alloy Ni80Cr20 wire 0.025 mm for heating element

Name: Nichrome Alloy Ni80Cr20 wire 0.025 mm for heating element
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Ni80Cr20
Price: 300.00 USD
Availability: InStock

Rincian Produk

Tempat asal: CINA

Nama merek: Tankii

Sertifikasi: ISO9001 Rohs

Nomor model: Ni80Cr20

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 10kg

Harga: dapat dinegosiasikan

Kemasan rincian: Kasing kayu

Waktu pengiriman: 15-25 hari

Syarat-syarat pembayaran: T/T, Western Union

Menyediakan kemampuan: 100 ton per tahun

Dapatkan Harga Terbaik

Hubungi sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:

Model no.:	Ni80Cr20	Jenis:	Paduan tahan korosi berbasis Ni
Kondisi:	Cerah, dianil, lembut	Warna:	Sliver
Ohm/meter:	Seragam	Metode pengiriman:	Melalui Udara, Laut, Ekspres
Mencicipi:	Tersedia	Penggunaan:	Pemanas, resistor
Perpanjangan Min:	20%	Spesifikasi:	RoHS, ISO 9001: 2008
Paket transportasi:	Gulungan, karton, kotak kayu

Model no.:	Ni80Cr20
Jenis:	Paduan tahan korosi berbasis Ni
Kondisi:	Cerah, dianil, lembut
Warna:	Sliver
Ohm/meter:	Seragam
Metode pengiriman:	Melalui Udara, Laut, Ekspres
Mencicipi:	Tersedia
Penggunaan:	Pemanas, resistor
Perpanjangan Min:	20%
Spesifikasi:	RoHS, ISO 9001: 2008
Paket transportasi:	Gulungan, karton, kotak kayu

Deskripsi

Nichrome Alloy Ni80Cr20 wire 0.025 mm for heating element

Quick Data Show:

Grade: Nichrome 80/20

Chemical Composition: Nickel 80%, Chrome 20%

Electrical Resistivity: 1.09 ohm mm2/m

Max working temperature: 1200 C

Condition: Bright, Annealed, Soft

Wire diameter 0.015mm-1.0mm packing in spool

Rod, Bar diameter 1mm-30mm

Flat Wire, Ribbon, Foil, Sheet thickness 0.005mm~2.5mm, Width 0.5mm~500mm

Plate: Thickness 2.5mm~7mm, width 10mm~500mm

Usually used as heating element, resistor.

Our advantage: Long working Life and anti-oxidation under high temperature

Detailed Description:

Grade: NiCr 80/20 is also called Chromel A, N8, Nichrome V, HAI-NiCr 80, Tophet A, Resistohm 80, Cronix 80, Protoloy, Alloy A, MWS-650, Stablohm 650, NCHW1

We also produce other kind of nichrome resistance wire, such as NiCr 70/30,NiCr 60/15,NiCr 60/23,NiCr 37/18, NiCr 35/20, NiCr 25/20,Karma

Chemical Composition and Properties:

Properties/Grade		NiCr 80/20	NiCr 70/30	NiCr 60/15	NiCr 35/20	NiCr 30/20
Main Chemical Composition(%)	Ni	Bal.	Bal.	55.0-61.0	34.0-37.0	30.0-34.0
	Cr	20.0-23.0	28.0-31.0	15.0-18.0	18.0-21.0	18.0-21.0
	Fe	≤ 1.0	≤ 1.0	Bal.	Bal.	Bal.
Max Working Temperature(ºC)		1200	1250	1150	1100	1100
Resistivity at 20ºC (μ Ω · m)		1.09	1.18	1.12	1.04	1.04
Density(g/cm3)		8.4	8.1	8.2	7.9	7.9
Thermal Conductivity (KJ/m· h· ºC)		60.3	45.2	45.2	43.8	43.8
Coefficient of Thermal Expansion (α × 10-6/ºC)		18	17	17	19	19
Melting Point(ºC)		1400	1380	1390	1390	1390
Elongation(%)		> 20	> 20	> 20	> 20	> 20
Micrographic Structure		austenite	austenite	austenite	austenite	austenite
Magnetic Property		nonmagnetic	nonmagnetic	nonmagnetic	nonmagnetic	nonmagnetic

Nichrome Alloy Ni80Cr20 wire 0.025 mm for heating element 0
