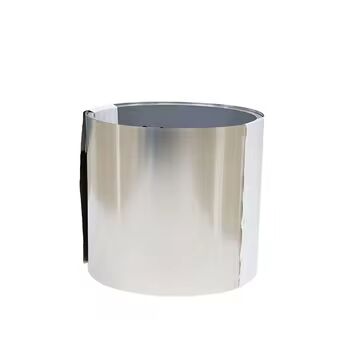

0.02x100mm CuNi44 Constantan strip Copper Nickel Alloy foil

Name: 0.02x100mm CuNi44 Constantan strip Copper Nickel Alloy foil
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: konstanta CuNi44
Price: 27.00 USD
Availability: InStock

Rincian Produk

Tempat asal: Cina

Nama merek: Tankii

Sertifikasi: ISO90001

Nomor model: konstanta CuNi44

Dokumen: Tankii Alloy Catalog.pdf

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 10kg

Harga: 24-30USD/Kg

Kemasan rincian: Kasus

Waktu pengiriman: 15-25 hari

Syarat-syarat pembayaran: T/T, D/P, D/A, L/C, Western Union

Menyediakan kemampuan: 5000kg/bulan

Dapatkan Harga Terbaik

Hubungi sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:

Warna:	Putih perak	Standar:	GB/ASTM/JIS/BIS/DIN
Mencicipi:	Pesanan kecil diterima	Permukaan:	Terang
Kepadatan:	8.9 (G/CM3)	Resistivitas:	0,49+/-5%

Warna:	Putih perak
Standar:	GB/ASTM/JIS/BIS/DIN
Mencicipi:	Pesanan kecil diterima
Permukaan:	Terang
Kepadatan:	8.9 (G/CM3)
Resistivitas:	0,49+/-5%

Deskripsi

0.02x100mm CuNi44 Constantan strip Copper Nickel Alloy foil

0.02x100mm CuNi44 Constantan strip Copper Nickel Alloy foil

Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
44	1%	0.5	-	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	400ºC
Resisivity at 20ºC	0.49±5%ohm mm2/m
Density	8.9 g/cm3
Thermal Conductivity	-6(Max)
Melting Point	1280ºC
Tensile Strength,N/mm2 Annealed,Soft	340~535 Mpa
Tensile Strength,N/mm3 Cold Rolled	680~1070 Mpa
Elongation(anneal)	25%(Min)
Elongation(cold rolled)	≥Min)2%(Min)
EMF vs Cu, μV/ºC (0~100ºC)	-43
Micrographic Structure	austenite
Magnetic Property	Non

main specifications and main technical parameter of resistance alloy constantan wire

main property type		NC003 Cuni1	NC005 CuNI2	NC010 CuNI6	NC015 CuNI10	NC025 CuNi19	NC030 CuNi23	NC035 CuNi30	NC040 CuNi34	NC050 CuNI44
main chemical composition	Ni	1	2	6	10	19	23	30	34	44
	MN	/	/	/	/	0.5	0.5	1.0	1.0	1.0
	CU	rest	rest	rest	rest	rest	rest	rest	rest	rest
max working temperature		/	200	220	250	300	300	350	350	400
density g/cm3		8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9
resistivity at 20 °c		0.03 ±10%	0.05 ±10%	0.10 ±10%	0.15 ±10%	0.25 ±5%	0.30 ±5%	0.35 ±5%	0.40 ±5%	0.49 ±5%
temperature coefficient of resistance		<100	<120	<60	<50	<25	<16	<10	-0	<-6
tensile strength mpa		>210	>220	>250	>290	>340	>350	>400	>400	>420
elongation		>25	>25	>25	>25	>25	>25	>25	>25	>25
melting point °c		1085	1090	1095	1100	1135	1150	1170	1180	1280
coefficient of conductivity		145	130	92	59	38	33	27	25	23

Application of Constantan
Constantan is a copper-nickel alloy that contains specific minor amounts of additional elements to achieve precise values for the temperature coefficient of resistivity. Careful control of melting and conversion practices results in a very low level of pinholes at ultra-thin thicknesses. The alloy is used extensively for foil resistors and strain gauges.

0.02x100mm CuNi44 Constantan strip Copper Nickel Alloy foil 12

0.02x100mm CuNi44 Constantan strip Copper Nickel Alloy foil 13

0.02x100mm CuNi44 Constantan strip Copper Nickel Alloy foil 14
