Nickel-Cromium Wire 3070 Nickel Wire With High Quality

Name: Nickel-Cromium Wire 3070 Nickel Wire With High Quality
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Kawat Nikel-Kromium 3070
Price: 22.00 USD
Availability: InStock

Rincian Produk

Tempat asal: Cina

Nama merek: Tankii

Sertifikasi: ISO9001

Nomor model: Kawat Nikel-Kromium 3070

Dokumen: Tankii Alloy Catalog.pdf

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 10kg

Harga: 20-25USD/Kg

Kemasan rincian: Kasus

Waktu pengiriman: 10-15 hari

Syarat-syarat pembayaran: L/C,D/A,D/P,T/T,Western Union

Menyediakan kemampuan: 500 ton/Tahun

Dapatkan Harga Terbaik

Hubungi sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:

Diameter kawat bundar:	0,018mm-10mm	Lebar Pita Nichrome:	5~0,5mm
Ketebalan Pita Nichrome:	0,01-2 mm	Waktu pengiriman:	7-45 Hari

Diameter kawat bundar:	0,018mm-10mm
Lebar Pita Nichrome:	5~0,5mm
Ketebalan Pita Nichrome:	0,01-2 mm
Waktu pengiriman:	7-45 Hari

Deskripsi

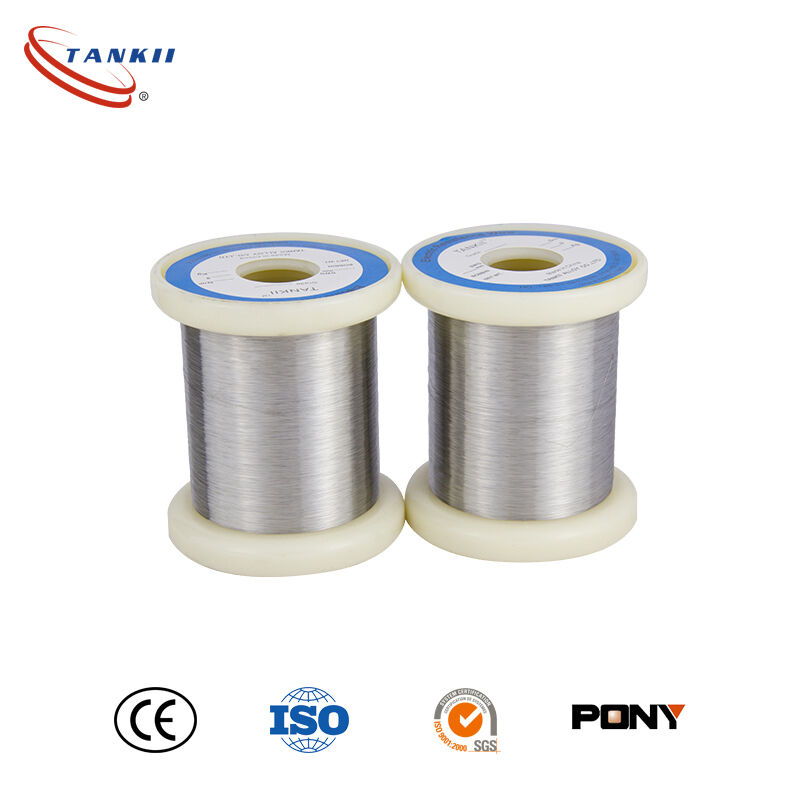

Nickel-Cromium Wire 3070 Nickel Wire With High Quality

Nickel-Cromium Wire 3070 Nickel Wire With High Quality

Nichrome Round Wire: Diameter 0.018mm~10mm

Nichrome Ribbon: Width 5-0.5mm, thickness 0.01-2mm
Grade: Ni80Cr20, Ni70/30, Ni60Cr15, Ni60Cr23, Ni35Cr20Fe

Nichrome's metallurgical structure confers them a very good plasticity when cold.
ASTM B603, DIN 17470, JIS C2520, GB/T1234.

Our advantage: High quality,short delivery time,small MOQ.
Characteristics: Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.
Usage:Resistance heating elements;Material in metallurgy;Household appliances;Mechanical manufacturing and other industries.

Chemical Composition and Main Properties of Nichrome
Properties Grade		NiCr 80/20	NiCr 70/30	NiCr 60/15	NiCr 35/20	NiCr 30/20
Main Chemical Composition	Ni	Balance	Balance	55.0-61.0	34.0-37.0	30.0-34.0
	Cr	20.0-23.0	28.0-31.0	15.0-18.0	18.0-21.0	18.0-21.0
	Fe	≤ 1.0	≤ 1.0	Balance	Balance	Balance
Max Continuous Service Temperature (oC)		1200	1250	1150	1100	1100
Resisivity 20oC (Ω mm2/m)		1.09	1.18	1.12	1.04	1.04
Density (g/cm3)		8.4	8.1	8.2	7.9	7.9
Thermal Conductivity (KJ/m@ h@ oC)		60.3	45.2	45.2	43.8	43.8
Coefficient of Thermal Expansion (α × 10-6/oC)		18	17	17	19	19
Melting Point ( oC)		1400	1380	1390	1390	1390
Elongation (%)		> 20	> 20	> 20	> 20	> 20
Micrographic Structure		austenite	austenite	austenite	austenite	austenite
Magnetic Property		nonmagnetic	nonmagnetic	nonmagnetic	Weak magnetic	Weak magnetic

Nickel-Cromium Wire 3070 Nickel Wire With High Quality 4

Nickel-Cromium Wire 3070 Nickel Wire With High Quality 5

Nickel-Cromium Wire 3070 Nickel Wire With High Quality 6

Nickel-Cromium Wire 3070 Nickel Wire With High Quality 7

Nickel-Cromium Wire 3070 Nickel Wire With High Quality 8
