0.05mm Enamelled Nichrome Ni80cr20 Wire

Name: 0.05mm Enamelled Nichrome Ni80cr20 Wire
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Ni80Cr20
Price: 25.00 USD
Availability: InStock

Rincian Produk

Tempat asal: Cina

Nama merek: Tankii

Sertifikasi: ISO9001

Nomor model: Ni80Cr20

Dokumen: Tankii Alloy Catalog.pdf

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 10kg

Harga: 20-30USD/KG

Kemasan rincian: Kasus

Waktu pengiriman: 15-20 hari

Syarat-syarat pembayaran: L/C,D/A,D/P,T/T,Western Union

Menyediakan kemampuan: 5000kg/bulan

Dapatkan Harga Terbaik

Hubungi sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:

Warna Isolasi:	Merah, Hijau, Kuning, Hitam, Biru, Alam dll.	Paket Transportasi:	Dikemas Ke dalam Palet Kayu Lapis atau Kotak Kayu
Asal:	Shanghai	Kapasitas Produksi:	1ton/Bulan
Model TIDAK.:	Ni80Cr20

Warna Isolasi:	Merah, Hijau, Kuning, Hitam, Biru, Alam dll.
Paket Transportasi:	Dikemas Ke dalam Palet Kayu Lapis atau Kotak Kayu
Asal:	Shanghai
Kapasitas Produksi:	1ton/Bulan
Model TIDAK.:	Ni80Cr20

Deskripsi

0.05mm Enamelled Nichrome Ni80cr20 Wire

0.05mm Enamelled Nichrome Ni80Cr20 Wire

Common Name:(enameled Resistor wire,enameled heating wire,enameled wound wire)

Product Description
These enameled resistance wires have been broadly used for standard resistors, automobile parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.
Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.

Type of bare alloy wire

Copper-nickel alloy wire,	Constantan Wire,CuNi1~CuNi44
Ni-Cr Alloy wire	NiCr35/20,NiCr70/30,NiCr60/15,NiCr80/20,NiCr90/10,NiCr AA,Karma.
Fe-Cr-Al Alloy wire	Cr13Al4,Cr21Al4,Cr21Al6,Cr23Al5,Cr25Al5, Cr21Al6Nb,Cr27Al7Mo2,
Cu-Ni-Mn Alloy wire	CuMn12Ni2,CuMn12Ni4,Manganin
Any copper alloy and nickel alloy is available

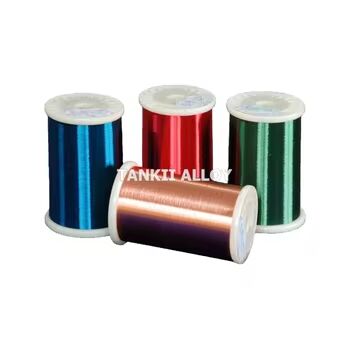

Color of enameled insulation:

Red,Green,Yellow,Black,Blue,Nature etc.

Type of insulation

Insulation-enamelled Name	Thermal LevelºC (working time 2000h)	Code Name	GB Code	ANSI. TYPE
Polyurethane enamelled wire	130	UEW	QA	MW75C
Polyester enamelled wire	155	PEW	QZ	MW5C
Polyester-imide enamelled wire	180	EIW	QZY	MW30C
Polyester-imide and polyamide-imide double coated enameled wire	200	EIWH (DFWF)	QZY/XY	MW35C
Polyamide-imide enamelled wire	220	AIW	QXY	MW81C

Style of supply

Alloys Name	Type	Dimension
Enameled-W	Wire	D=0.018mm~3mm
Enameled-R	Ribbon	W=0.4~24	T=0.01~0.2mm

Dimension of insulation

D mm	Min thickness of insulation		Max OD of Enameled
D mm	I	II	I	II
0.02	0.005	0.009	0.09	0.036
0.022	0.005	0.019	0.032	0.038
0.025	0.006	0.010	0.036	0.042
0.028	0.006	0.010	0.039	0.045
0.030	0.006	0.011	0.042	0.048
0.032	0.006	0.011	0.044	0.050
0.036	0.007	0.012	0.049	0.055
0.040	0.007	0.012	0.053	0.060
0.045	0.008	0.013	0.059	0.066
0.050	0.008	0.014	0.064	0.072
0.056	0.009	0.015	0.071	0.079
0.060	0.009	0.016	0.076	0.084
0.063	0.009	0.016	0.080	0.088
0.071	0.010	0.017	0.089	0.097
0.080	0.011	0.018	0.099	0.108
0.090	0.012	0.019	0.111	0.120
0.100	0.012	0.021	0.122	0.132
0.112	0.012	0.021	0.135	0.146
0.125	0.014	0.023	0.150	0.161
0.140	0.015	0.024	0.166	0.179
0.150	0.016	0.025	0.177	0.191
0.160	0.017	0.028	0.188	0.202
0.180	0.018	0.028	0.210	0.225
0.200	0.019	0.030	0.231	0.248
0.224	0.021	0.032	0.258	0.275
0.250	0.022	0.034	0.285	0.304
0.280	0.024	0.036	0.318	0.338
0.300	0.025	0.037	0.339	0.360
0.315	0.026	0.038	0.356	0.376
0.355	0.027	0.041	0.398	0.420
0.400	0.028	0.043	0.445	0.468
0.450	0.030	0.048	0.498	0.524
0.500	0.031	0.049	0.551	0.578
0.560	0.034	0.052	0.615	0.643
0.600	0.035	0.054	0.657	0.686
0.630	0.038	0.056	0.689	0.718
0.710	0.038	0.059	0.773	0.805
0.00	0.041	0.062	0.869	0.902
0.900	0.043	0.066	0.973	1.010
1.000	0.048	0.070	1.079	1.117
1.120	0.049	0.074	1.205	1.247
1.250	0.053	0.080	1.343	1.387
1.400	0.058	0.085	1.499	1.548
1.500	0.059	0.090	1.605	1.654

0.05mm Enamelled Nichrome Ni80cr20 Wire 0

0.05mm Enamelled Nichrome Ni80cr20 Wire 1

0.05mm Enamelled Nichrome Ni80cr20 Wire 2

0.05mm Enamelled Nichrome Ni80cr20 Wire 3

0.05mm Enamelled Nichrome Ni80cr20 Wire 4
