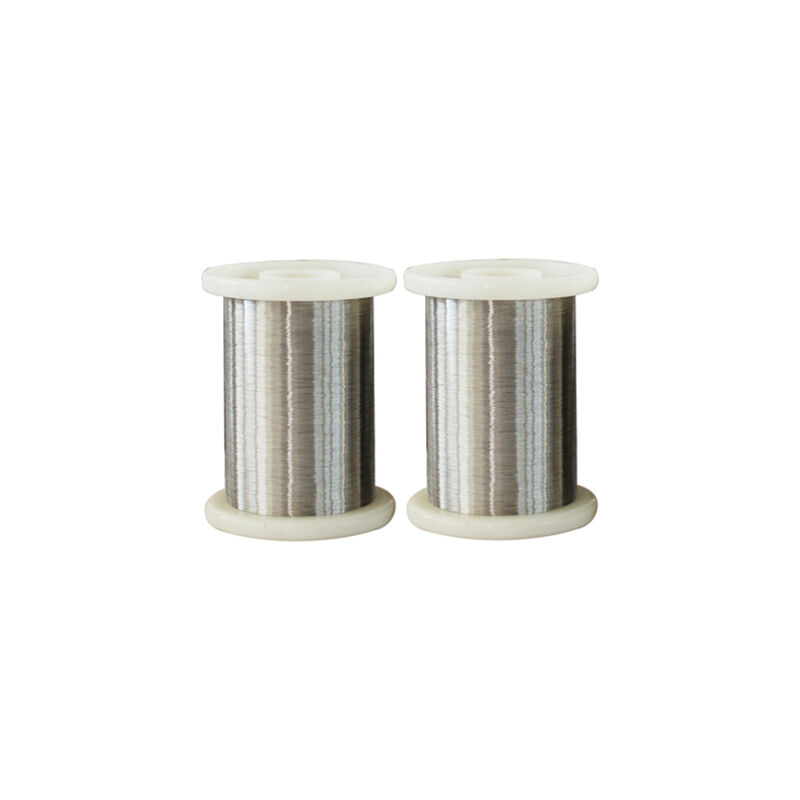

0.03mmChromel Alumel Bare Wire Thermocouple Wire (K Type)

Name: 0.03mmChromel Alumel Bare Wire Thermocouple Wire (K Type)
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Tipe K)
Price: 25.00 USD
Availability: InStock

Rincian Produk

Tempat asal: Cina

Nama merek: Tankii

Sertifikasi: ISO9001

Nomor model: Tipe K)

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 10kg

Harga: 20-30USD/Kg

Kemasan rincian: csae

Waktu pengiriman: 10-30 hari

Syarat-syarat pembayaran: L/C,D/A,D/P,T/T,Western Union

Menyediakan kemampuan: 5000kg/bulan

Dapatkan Harga Terbaik

Hubungi sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:

Dia:	0.3/0.5/0.8/1.0/1.2/1.6/2.0/2.5/3.2mmm	Permukaan:	Cerah/ teroksidasi
Nilai:	I/II/III	Kekuatan Tarik:	390
Barang:	Kawat Telanjang Kawat Termokopel (Tipe K)

Dia:	0.3/0.5/0.8/1.0/1.2/1.6/2.0/2.5/3.2mmm
Permukaan:	Cerah/ teroksidasi
Nilai:	I/II/III
Kekuatan Tarik:	390
Barang:	Kawat Telanjang Kawat Termokopel (Tipe K)

Deskripsi

0.03mmChromel Alumel Bare Wire Thermocouple Wire (K Type)

Chromel Alumel Bare wire Thermocouple Wire (K Type)
NiCr-Ni/NiAl (Type K) thermocouple wire finds the widest use in all basemetal thermocouple, at temperature above 500 °C.
Type K thermocouple wire has strong resistance to oxidation than other base metal thermocouples. It has high EMF against Platinum 67, excellent temperature accuracy, sensitivity and stability, with a low cost. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in the following cases:
(1) Alternatively oxidizing and reducing atmosphere.
(2) Atmosphere with sulphur gases.
(3) Long time in vacuum.
(4) Low oxidizing atmosphere such as hydrogen and carbon monoxide atmosphere.
NiCr-NiAl thermocouple wire can be produced as per the chemical composition requirement of the customers.
Insulation material: PVC, PTFE, FB or as per the customer's requirement.

Detailed Parameter

Chemical Composition
Conductor Name	Polarity	Code	Nominal Chemical Composition /%
Conductor Name	Polarity	Code	Ni	Cr	Si
Ni-Cr	Positive	KP	90	10	--
Ni- Si	Negative	KN	97	--	3

Working Temperature
Diameter/mm	Long time Working temperature /ºC	Short period Working temperature /ºC
0.3	700	800
0.5	800	900
0.8,1.0	900	1000
1.2,1.6	1000	1100
2.0,2.5	1100	1200
3.2	1200	1300

0.03mmChromel Alumel Bare Wire Thermocouple Wire (K Type) 0

0.03mmChromel Alumel Bare Wire Thermocouple Wire (K Type) 1

0.03mmChromel Alumel Bare Wire Thermocouple Wire (K Type) 2

0.03mmChromel Alumel Bare Wire Thermocouple Wire (K Type) 3
