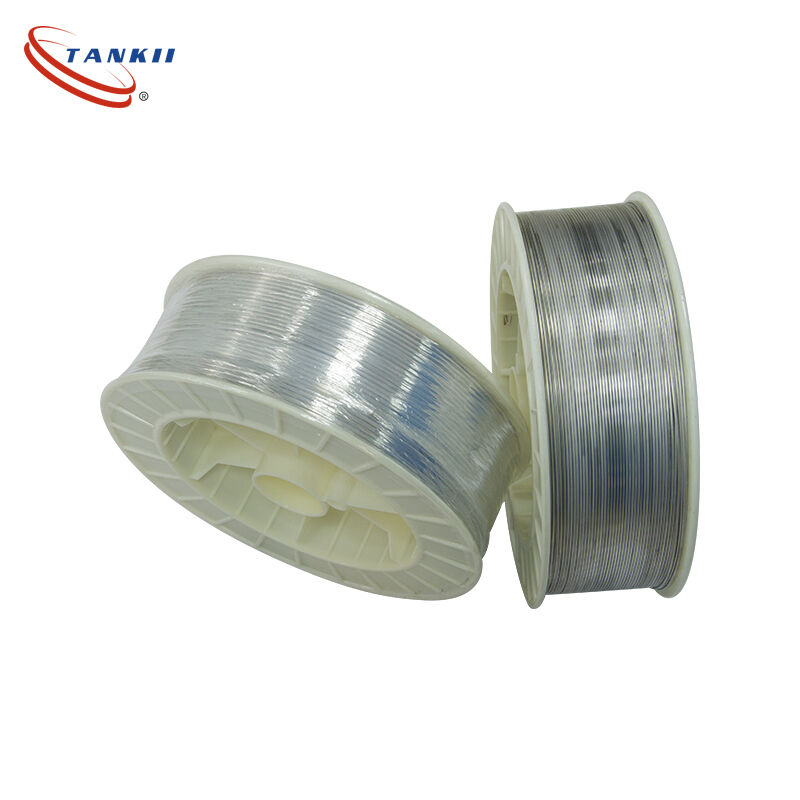

Ni95Al5 Thermal Spray Wire / 955 Nickel-Aluminum Bond Coat Wire

Name: Ni95Al5 Thermal Spray Wire / 955 Nickel-Aluminum Bond Coat Wire
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Ni95Al5
Price: 27.00 USD
Availability: InStock

Rincian Produk

Tempat asal: Cina

Nama merek: Tankii

Sertifikasi: ISO9001

Nomor model: Ni95Al5

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 15KG

Harga: 25-30USD/Kg

Kemasan rincian: Kasus

Waktu pengiriman: 10-15 hari

Syarat-syarat pembayaran: T/T, Western Union, D/P, D/A, L/C.

Menyediakan kemampuan: 500tons/bulan

Dapatkan Harga Terbaik

Hubungi sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:

Nomor model:	Ni95Al5 / NiAl-955 / TAFA 75B	Bahan:	Paduan Nikel-Aluminium
Aplikasi:	Semprotan Termal, Lapisan Ikatan, Anti Korosi, Perlindungan Suhu Tinggi	Diameter:	1,6mm / 2,0mm (±0,05mm)
Pemanjangan:	40%	Titik lebur:	1 390 °C
Suhu Kerja:	1 300 °C (maks)	Standar:	AMS 4778, ASTM B833, ISO 14919
Kemasan:	15 kg DIN 300 spul plastik, foil vakum, karton, palet

Nomor model:	Ni95Al5 / NiAl-955 / TAFA 75B
Bahan:	Paduan Nikel-Aluminium
Aplikasi:	Semprotan Termal, Lapisan Ikatan, Anti Korosi, Perlindungan Suhu Tinggi
Diameter:	1,6mm / 2,0mm (±0,05mm)
Pemanjangan:	40%
Titik lebur:	1 390 °C
Suhu Kerja:	1 300 °C (maks)
Standar:	AMS 4778, ASTM B833, ISO 14919
Kemasan:	15 kg DIN 300 spul plastik, foil vakum, karton, palet

Deskripsi

Ni95Al5 Thermal Spray Wire / 955 Nickel-Aluminum Bond Coat Wire

Product Name
Ni95Al5 Thermal Spray Wire / 955 Nickel-Aluminum Bond Coat Wire

Grade / Equivalent
NiAl 955, Ni95Al5, TAFA 75B, PMET 885, MEC 885

Wire Chemistry (wt %)
Ni ≥ 95 | Al 4-5 | C ≤ 0.02 | Mn ≤ 0.2 | Si ≤ 0.2 | Fe ≤ 0.5 | O ≤ 0.005 | Others ≤ 0.5

Available Diameters & Tolerance
1.6 mm (-0 / +0.05 mm) | 2.0 mm (-0 / +0.05 mm)
Other sizes on request.

Typical Physical & Spray Properties

Density: 8.83 g cm⁻³
Elongation: 40 %
Max. service temperature: 1 300 °C (short-term 1 390 °C)
As-sprayed hardness: 200-260 HV
Bond strength on mild steel: ≥ 55 MPa
Oxide content after spraying: ≤ 3 %
Surface finish: bright, smooth, free of draw-marks

Key Coating Characteristics
✔ Ultra-dense microstructure, porosity < 2 %
✔ Self-bonding to most iron & nickel-base substrates (no intermediate layer required)
✔ Forms in-situ Al₂O₃ scale → excellent high-temperature oxidation & corrosion resistance
✔ Outstanding thermal-shock & scuff resistance

Recommended Spray Parameters (Arc-Spray)
Voltage: 30-34 V | Current: 120-180 A | Air pressure: 0.55-0.65 MPa
Stand-off distance: 150-200 mm | Traverse speed: 200-400 mm s⁻¹

Main Applications

Bond coat for ceramic top-coats (ZrO₂, Al₂O₃, Cr₂O₃) on gas-turbine blades, piston rods, boiler tubes
Corrosion-resistant under-layer for chemical pump shafts, fan impellers, marine propellers
Restoration of worn glass-moulds, forging dies, paper dryer rolls
EMI shielding & conductive coatings in electronic housings

Packaging Options

15 kg / 25 kg plastic spool (DIN 300) + vacuum foil + export carton
50-250 kg steel coil, PE-wrapped + wooden pallet
Custom labelling & bar-coding available

Standards Conformance
AMS 4778, ASTM B833, ISO 14919, GB/T 30566

Shelf Life & Storage
5 years in original unopened packaging; store < 25 °C, RH < 60 %, away from acids & sulphur.

MOQ & Lead Time
15 kg; 3-5 days ex-factory for ≤ 500 kg, 7-10 days for ≤ 2 t.

HS Code
7505.22.00

Ni95Al5 Thermal Spray Wire / 955 Nickel-Aluminum Bond Coat Wire 1

Ni95Al5 Thermal Spray Wire / 955 Nickel-Aluminum Bond Coat Wire 2

Ni95Al5 Thermal Spray Wire / 955 Nickel-Aluminum Bond Coat Wire 3

Ni95Al5 Thermal Spray Wire / 955 Nickel-Aluminum Bond Coat Wire 4

Ni95Al5 Thermal Spray Wire / 955 Nickel-Aluminum Bond Coat Wire 5

Ni95Al5 Thermal Spray Wire / 955 Nickel-Aluminum Bond Coat Wire 6
