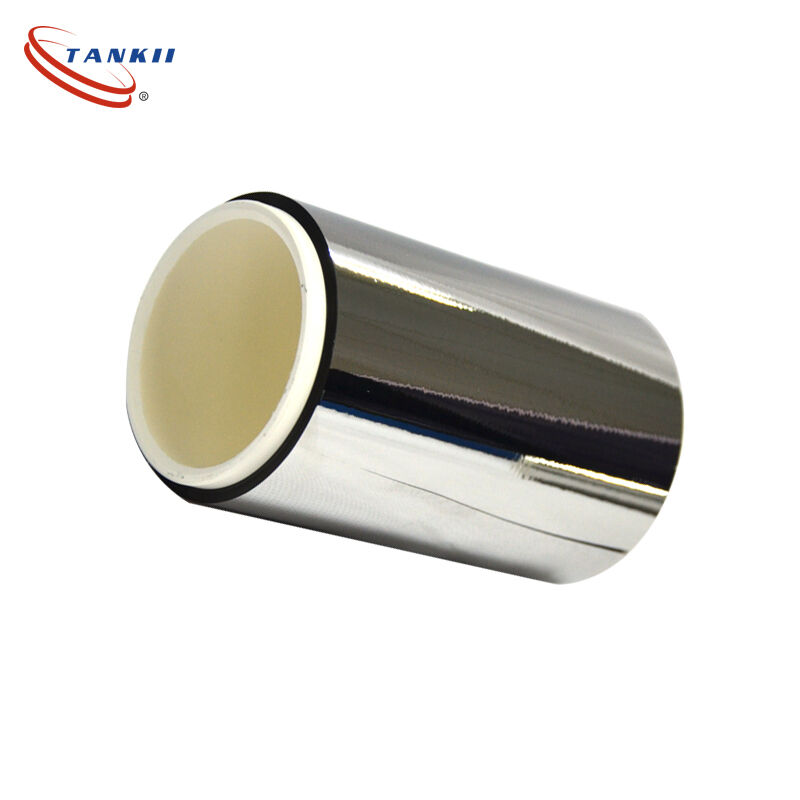

Pure Nickel Foil Purity >99.5% / Ultra-thin Battery Grade Nickel Strip

Name: Pure Nickel Foil Purity >99.5% / Ultra-thin Battery Grade Nickel Strip
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Foil nikel murni
Price: 32.00 USD
Availability: InStock

Rincian Produk

Tempat asal: Cina

Nama merek: Tankii

Sertifikasi: ISO9001

Nomor model: Foil nikel murni

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 30kg

Harga: 25-40USD/Kg

Kemasan rincian: Kasus

Waktu pengiriman: 15-30 hari

Syarat-syarat pembayaran: Serikat Barat,T/T

Menyediakan kemampuan: 500ton/Kg

Dapatkan Harga Terbaik

Hubungi sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:

Resistivitas listrik (20 ° C):	6,97 μΩ·cm	Konduktivitas termal:	90,7 W/m·K
Kepadatan:	8,89 - 8,9 gram/cm³	Titik lebur:	1453°C
Kekuatan Tarik (Anil):	450 - 550 MPa

Resistivitas listrik (20 ° C):	6,97 μΩ·cm
Konduktivitas termal:	90,7 W/m·K
Kepadatan:	8,89 - 8,9 gram/cm³
Titik lebur:	1453°C
Kekuatan Tarik (Anil):	450 - 550 MPa

Deskripsi

Pure Nickel Foil Purity >99.5% / Ultra-thin Battery Grade Nickel Strip

Pure Nickel Foil Purity >99.5% / Ultra-thin Battery Grade Nickel Strip

Pure Nickel Foil with purity >99.5% (typically 99.9% to 99.98%) is a critical material in the battery industry, primarily used as current collectors, battery tabs, connectors, and substrates for various battery chemistries. Grades include Nickel 200 (N02200), Nickel 201 (N02201), N4, N6, and ultra-high purity variants.

Grade	Ni+Co (min)	Cu (max)	Fe (max)	Mn (max)	C (max)	Si (max)	S (max)	Purity Level
N4	99.9%	0.015%	0.04%	0.002%	0.01%	0.03%	0.001%	99.9%
N6	99.5%	0.10%	0.10%	0.05%	0.10%	0.10%	0.005%	99.5%
Nickel 200 (N02200)	99.0%	0.25%	0.40%	0.35%	0.15%	0.35%	0.01%	99.0%
Nickel 201 (N02201)	99.0%	0.25%	0.40%	0.35%	0.02%	0.35%	0.01%	99.0%
Ultra-High Purity	99.98%	-	-	-	-	-	-	99.98%

Physical & Electrical Properties

Electrical Resistivity (20°C)	6.97 μΩ·cm
Thermal Conductivity	90.7 W/m·K
Density	8.89 - 8.9 g/cm³
Melting Point	1453°C
Boiling Point	2732°C
Curie Temperature	360°C
Tensile Strength (Annealed)	450 - 550 MPa
Tensile Strength (Cold Rolled)	550 - 800 MPa
Elongation	≥15%
Hardness	90-220 HV

Packaging & Delivery

Packaging	Plastic film + wooden case/pallet; coil packaging
Paper Core ID	Ø200mm, Ø300mm, Ø400mm, Ø500mm, or custom
MOQ	1 kg (samples) to 500 kg (production)
Delivery Time	7-15 days (stock), 15-30 days (custom)
Shipping Ports	Shanghai, Shenzhen, Ningbo, Mumbai
