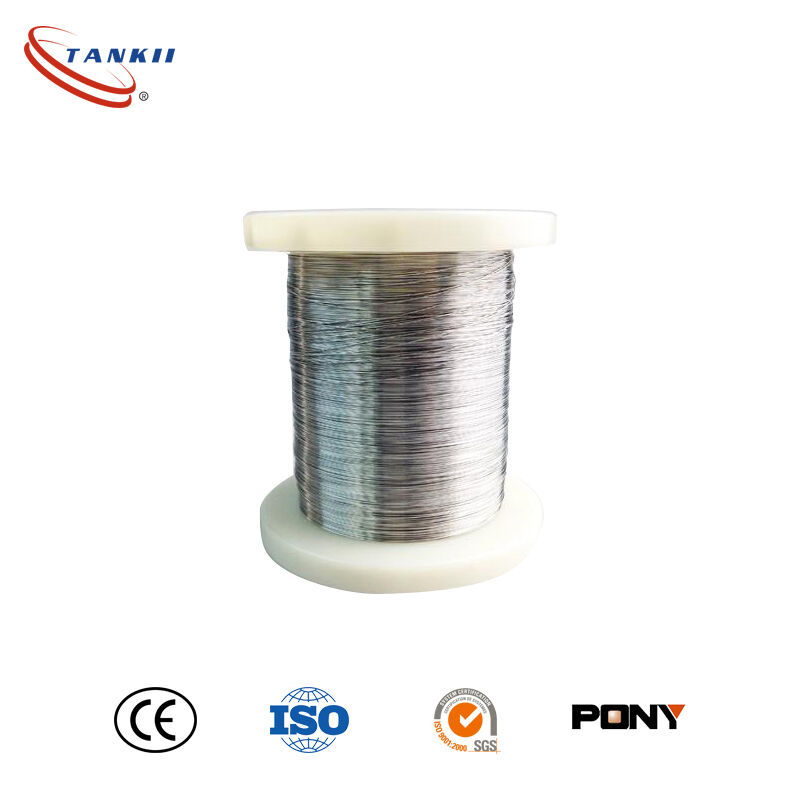

High Performance 0.025mm Pure Nickel Wire Ni200 with High Ductility and Excellent Corrosion Resistance for Lithium Battery

Rincian Produk

Tempat asal: Cina

Nama merek: Tankii

Sertifikasi: ISO9001 Rohs

Nomor model: N4

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 10KG

Harga: dapat dinegosiasikan

Kemasan rincian: kotak kayu

Waktu pengiriman: 15-25 hari

Syarat-syarat pembayaran: L/C, T/T, Western Union

Menyediakan kemampuan: 2000 Ton per tahun

Dapatkan Harga Terbaik

Hubungi sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                              Pure Nickel Wire N4 N6 for Lithium Battery, Ni200 Nickel Alloy Wire 0.025mm, High Performance Nickel Wire for Battery


Deskripsi

High Performance 0.025mm Pure Nickel Wire Ni200 with High Ductility and Excellent Corrosion Resistance for Lithium Battery

Grade:Ni200,Ni201,N4,N6
High ductility
Excellent corrosion resistance
good mechanical strength

Alloy Description

Nickel 200/201 is most widely used grade, generally specified for transistor caps, anodes for electronic tubes, leads of electronic components / Lead-in-Wires for lamps and for Wire-Mesh. Also used in strip form for various applications including Ni-Cd batteries.

Condition of Supply

Nickel 200, 201 and 205 are supplied in the following conditions:
Cold Drawn, Special Temper.
Cold Drawn, Annealed. Straightened and Cut Lengths.
Note:

NUS N02201 (ASTM B 162) same as N4 (GB/T 2054).

NUS N02200 (ASTM B 162) same as N6 (GB/T 2054).

Chemical composition

Grade	Ni+Co	Cu	Si	Mn	C	Mg	S	P	Fe
N4	99.9	0.015	0.03	0.002	0.01	0.01	0.001	0.001	0.04
N6	99.6	0.10	0.10	0.05	0.10	0.10	0.005	0.002	0.10
Ni201	99.0	≤0.25	≤0.35	≤0.35	≤0.02	/	≤0.01	/	≤0.40
Ni200	99.0	0.20	0.30	0.30	0.15	/	0.01	/	0.40

Nickel Foil Capabilities

Grade	Pure Nickel Strip 99.6% / 99.9%
Thickness	0.002 to 2.50 mm
Tolerances	+/- 5% (special tolerances is available)
Width	Up to 350mm wide
Coil size	Up to 80 kg without welds
Temper Ranges	Annealed to Full Hard

Nickel Foil Product Precision

Thickness	Thickness allowance	Burr height	Width scope and tolerance
			2≤w<10	10≤w<50	50≤w<100	100≤w<150	150≤w<200	200≤w
0.02≤t<0.05	±0.003	≤0.005	± 0.05	±0.10	±0.15	±0.20	±0.30	±0.50
0.05≤t<0.1	±0.005	≤0.01
0.1≤t<0.2	±0.008	≤0.015
0.2≤t<0.3	±0.012	≤0.02
0.3≤t<0.4	±0.015	≤0.03	± 0.10	±0.15	±0.25	±0.50	±0.80	±1.00
0.4≤t<0.6	±0.025	≤0.05
0.6≤t<0.8	±0.030	≤0.06	± 0.30	±0.40	±0.50	±0.50	±0.80	±1.00
0.8≤t<1.0	±0.040
1.0≤t<1.2	±0.050	≤0.08	± 0.50	±0.50	±0.80	±1.00	±1.00	±1.50
1.2≤t<1.4	±0.060
1.4≤t<1.7	±0.070	≤0.10
1.7≤t<2.0	±0.080
