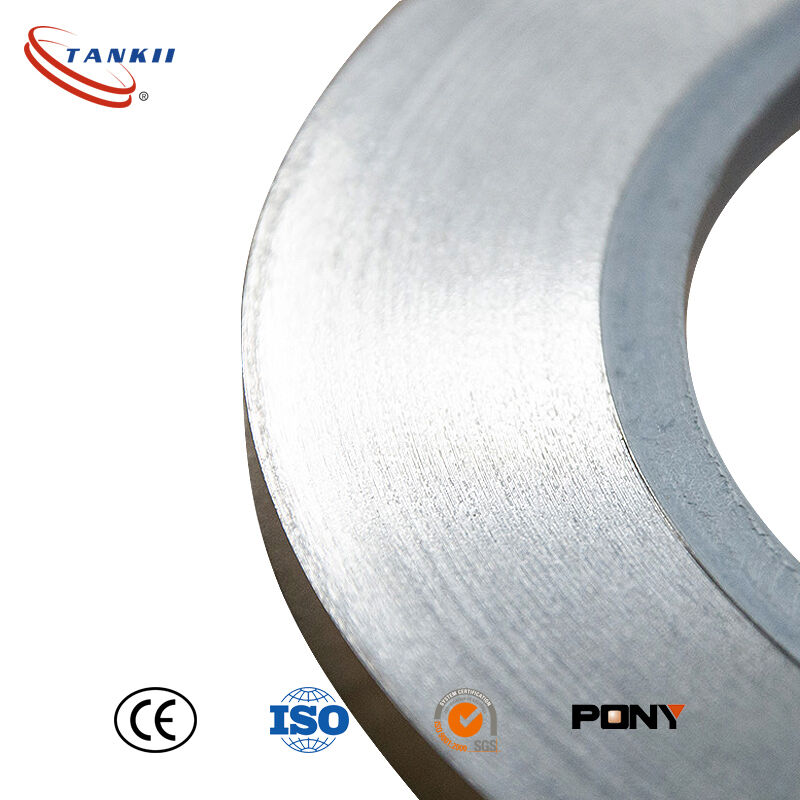

High Quality 0Cr25Al5 strip FeCrAl Tape for heating

Name: High Quality 0Cr25Al5 strip FeCrAl Tape for heating
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: tinja
Price: 26.00 USD
Availability: InStock

Rincian Produk

Tempat asal: Cina

Nama merek: Tankii

Sertifikasi: ISO9001 Rohs

Nomor model: tinja

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 30kg

Harga: dapat dinegosiasikan

Kemasan rincian: kotak kayu

Waktu pengiriman: 15-25 hari

Syarat-syarat pembayaran: L/C, T/T, Western Union

Menyediakan kemampuan: 2000 Ton per tahun

Dapatkan Harga Terbaik

Hubungi sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:

Nomor Model.:	0CR25AL5	permukaan:	Terang
Resistivitas:	1.35	Spesifikasi:	ASTM B603, DIN 17470, JIS C2520, GB/T1234
Ketebalan:	menit 0,01 mm.	menggunakan:	Peralatan Rumah Tangga
Asal:	Tankii, Tiongkok	Merek dagang:	Tankii
Kode HS:	7408229000

Nomor Model.:	0CR25AL5
permukaan:	Terang
Resistivitas:	1.35
Spesifikasi:	ASTM B603, DIN 17470, JIS C2520, GB/T1234
Ketebalan:	menit 0,01 mm.
menggunakan:	Peralatan Rumah Tangga
Asal:	Tankii, Tiongkok
Merek dagang:	Tankii
Kode HS:	7408229000

Deskripsi

High Quality 0Cr25Al5 strip FeCrAl Tape for heating

Grade: 1Cr13AL4, 0Cr15AL5, 0Cr23AL5, 0Cr25AL5, 0Cr21AL6Nb0Cr27AL7Mo2
Size: Wire: 0.15~10mm
Bar: 12~120mm

Properties/Grade		1Cr13Al4	0Cr21Al4	0Cr21Al6	0Cr23Al5	0Cr25Al5	0Cr21Al6Nb	0Cr27Al7Mo2
Main Chemical composition(%)	Cr	12.0-15.0	18.0-21.0	19.0-22.0	22.5-24.5	23.0-26.0	21.0-23.0	26.5-27.8
	Al	4.0-6.0	3.0-4.2	5.0-7.0	4.2-5.0	4.5-6.5	5.0-7.0	6.0-7.0
	Fe	Balance	Balance	Balance	Balance	Balance	Balance	Balance
	Re	opportune	opportune	opportune	opportune	opportune	opportune	opportune
							Nb:0.5	Mo:1.8-2.2
Max. continuous service temp. of element		950	1100	1250	1250	1250	1350	1400
Resistivity at 20oC (μ Ω @ m)		1.25+-0.08	1.23+-0.06	1.42+-0.07	1.35+-0.07	1.42+-0.06	1.45+-0.07	1.53+-0.07
Density (g/cm3)		7.4	7.35	7.16	7.25	7.1	7.1	7.1
Thermal conductivity (KJ/m@ h@ oC)		52.7	46.9	63.2	60.2	46.1	46.1	45.2
Coefficient of lines expansion(α × 10-6/oC)		15.4	13.5	14.7	15	16	16	16
Melting point (approx. )( oC)		1450	1500	1500	1500	1500	1510	1520
Elongation at rupture (%)		≥16	≥12	≥12	≥12	≥12	≥12	≥10
Micrographic structure		Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite
Magnetic properties		magnetic	magnetic	magnetic	magnetic	magnetic	magnetic	magnetic

As regards this electric heating alloy, we can suppply various wires, bars, plates, strips, rods, etc.

Description
With the characteristics of high resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature. It is mainly used in electric ceramic cooktop, industrial furnace.

Usage
It is mainly used in electric locomotive, diesel locomotive, metro vehicle and high speed moving car etc brake system brake resistor, electric ceramic cooktop, industrial furnace.

Features
Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.

Packing detail
1) Coil (plastic spool) + compressed ply-wooden case + pallet
2) Coil (plastic spool) + carton + pallet

Products and services:
1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Stable properties in high temperature;
5). Fast delivery;
High Quality 0Cr25Al5 strip FeCrAl Tape for heating 0
