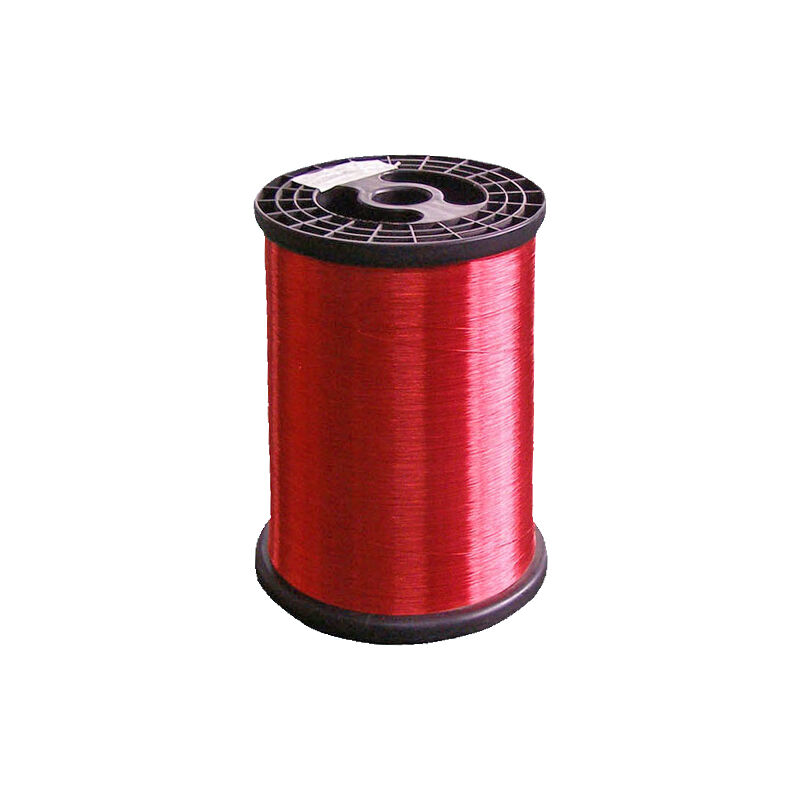

Enamelled Manganin CuMn12Ni Alloy Insulated Wire

Name: Enamelled Manganin CuMn12Ni Alloy Insulated Wire
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Kawat Manganin Berenamel
Price: 30.00 USD
Availability: InStock

Rincian Produk

Tempat asal: Cina

Nama merek: Tankii

Sertifikasi: ISO9001

Nomor model: Kawat Manganin Berenamel

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 10KG

Harga: 25-35USD/KG

Kemasan rincian: Kasus

Waktu pengiriman: 10-30 hari

Syarat-syarat pembayaran: Western Union,T/T,D/P,D/A,L/C

Menyediakan kemampuan: 2000KG/Bulan

Dapatkan Harga Terbaik

Hubungi sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                  Enamelled Manganin alloy wire, CuMn12Ni insulated wire, Copper nickel alloy wire with warranty


Melayani:	Samll Order diterima	Standar:	GB/ASTM/JIS/BIS/DIN
Mencicipi:	Bebas	Diameter:	0,05-1,5 mm
Tem. Kelas:	150, 180, 200, 220, 240,

Melayani:	Samll Order diterima
Standar:	GB/ASTM/JIS/BIS/DIN
Mencicipi:	Bebas
Diameter:	0,05-1,5 mm
Tem. Kelas:	150, 180, 200, 220, 240,

Deskripsi

Enamelled Manganin CuMn12Ni Alloy Insulated Wire

Enamelled Manganin CuMn12Ni Alloy insulated wire

Product Description
These enameled resistance wires have been broadly used for standard resistors, automobile
parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.
Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.

Type of bare Alloy wire
The alloy we can do enamelled are Copper-nickel alloy wire,Constantan wire,Manganin wire. Kama Wire,NiCr Alloy wire,FeCrAl Alloy wire etc alloy wire
Size:
Round wire:0.018mm~3.0mm
Color of enamel insulation:Red,Green,Yellow,Black,Blue,Nature etc.
Ribbon Size:0.01mm*0.2mm~1.2mm*24mm
Moq:5kg each size

Type of insulation

Insulation-enamelled Name	Thermal LevelºC (working time 2000h)	Code Name	GB Code	ANSI. TYPE
Polyurethane enamelled wire	130	UEW	QA	MW75C
Polyester enamelled wire	155	PEW	QZ	MW5C
Polyester-imide enamelled wire	180	EIW	QZY	MW30C
Polyester-imide and polyamide-imide double coated enameled wire	200	EIWH (DFWF)	QZY/XY	MW35C
Polyamide-imide enamelled wire	220	AIW	QXY	MW81C

Enamelled Manganin CuMn12Ni Alloy Insulated Wire 0

Enamelled Manganin CuMn12Ni Alloy Insulated Wire 1

Enamelled Manganin CuMn12Ni Alloy Insulated Wire 2

Enamelled Manganin CuMn12Ni Alloy Insulated Wire 3
