Enamelled Constantan Copper Nickel Alloy Wire with Medium Range Electrical Resistivity and Low Temperature-Coefficient for up to 400°C

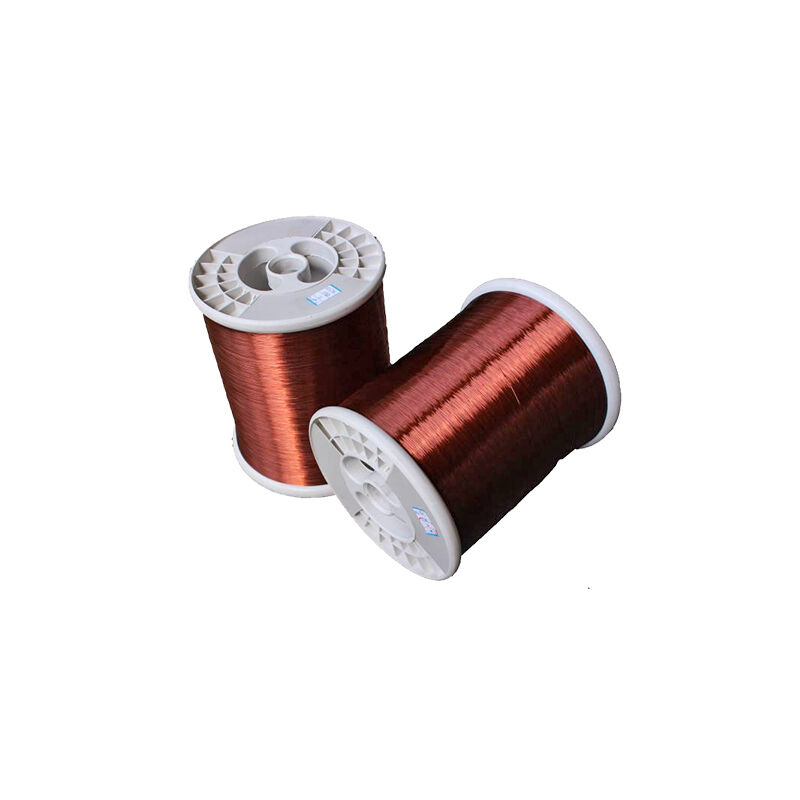

Name: Enamelled Constantan Copper Nickel Alloy Wire with Medium Range Electrical Resistivity and Low Temperature-Coefficient for up to 400°C
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Kawat Enamel
Price: 30.00 USD
Availability: InStock

Rincian Produk

Tempat asal: Cina

Nama merek: Tankii

Sertifikasi: ISO9001

Nomor model: Kawat Enamel

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 5kg

Harga: 25-35USD/KG

Kemasan rincian: Kasus

Waktu pengiriman: 10-30 hari

Syarat-syarat pembayaran: Western Union,T/T,D/P,D/A,L/C

Menyediakan kemampuan: 2000KG/Bulan

Dapatkan Harga Terbaik

Hubungi sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                  enamelled constantan resistor wire, copper nickel alloy resistor wire, constantan wire with enamel coating


Melayani:	Samll Order diterima	Mencicipi:	5kg
Warna:	Merah, Hitam, Perak dll,	Diameter:	0.02-1.5mm
Sedang mengemas:	Spool+karton

Melayani:	Samll Order diterima
Mencicipi:	5kg
Warna:	Merah, Hitam, Perak dll,
Diameter:	0.02-1.5mm
Sedang mengemas:	Spool+karton

Deskripsi

Enamelled Constantan Copper Nickel Alloy Wire with Medium Range Electrical Resistivity and Low Temperature-Coefficient for up to 400°C

Enamelled Constantan resistor copper nickel alloy Wire

TANKII Nickel-Copper alloy wire used mainly for its medium range electrical resistivity and very low temperature-coefficient of resistance.
Applications include power resistors, shunts, thermocouples and wire-wound precision resistors having operating temperatures up to 400 degree.

The copper-based low resistance heating alloy is widely used in low-voltage circuit breaker, thermal overload relay, and other low-voltage electrical product. It is one of the key materials of the low-voltage electrical products. The materials produced by our company have the characteristics of good resistance consistency and superior stability. We can supply all kinds of round wire, flat and sheet materials.
Type of insulation

Insulation-enamelled Name	Thermal LevelºC (working time 2000h)	Code Name	GB Code	ANSI. TYPE
Polyurethane enamelled wire	130	UEW	QA	MW75C
Polyester enamelled wire	155	PEW	QZ	MW5C
Polyester-imide enamelled wire	180	EIW	QZY	MW30C
Polyester-imide and polyamide-imide double coated enameled wire	200	EIWH (DFWF)	QZY/XY	MW35C
Polyamide-imide enamelled wire	220	AIW	QXY	MW81C
