240 ℃ High Temperature Resistant Enameled Wire Manganin 6J12 Microfilament Copper Nickel Alloy Wire

Name: 240 ℃ High Temperature Resistant Enameled Wire Manganin 6J12 Microfilament Copper Nickel Alloy Wire
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Kawat Enamel
Price: 30.00 USD
Availability: InStock

Rincian Produk

Tempat asal: Cina

Nama merek: Tankii

Sertifikasi: ISO9001

Nomor model: Kawat Enamel

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 5kg

Harga: 25-35USD/KG

Kemasan rincian: Kasus

Waktu pengiriman: 10-30 hari

Syarat-syarat pembayaran: Western Union,T/T,D/P,D/A

Menyediakan kemampuan: 2000KG/Bulan

Dapatkan Harga Terbaik

Hubungi sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                          240℃ high temperature enameled wire, manganin 6J12 alloy wire, high temp resistant copper nickel wire


Melayani:	Samll Order diterima	Standar:	GB/ASTM/JIS/BIS/DIN
Mencicipi:	Pesanan kecil diterima	Warna:	alam/Merah/Hijau/Hitam
Permukaan:	Terang	Diameter:	0,018-2,0mm
Kelas Temperamen:	155/180/22/220

Melayani:	Samll Order diterima
Standar:	GB/ASTM/JIS/BIS/DIN
Mencicipi:	Pesanan kecil diterima
Warna:	alam/Merah/Hijau/Hitam
Permukaan:	Terang
Diameter:	0,018-2,0mm
Kelas Temperamen:	155/180/22/220

Deskripsi

240 ℃ High Temperature Resistant Enameled Wire Manganin 6J12 Microfilament Copper Nickel Alloy Wire

Painted / Enameled /Enamelled Manganin Wire CuMn12Ni Microfilament

Product Description
These enameled resistance wires have been broadly used for standard resistors, automobile ,parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.
Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.

Type of bare Alloy wire
The alloy we can do enamelled are Copper-nickel alloy wire,Constantan wire,Manganin wire. Kama Wire,NiCr Alloy wire,FeCrAl Alloy wire etc alloy wire

Type of insulation

Insulation-enamelled Name	Thermal LevelºC (working time 2000h)	Code Name	GB Code	ANSI. TYPE
Polyurethane enamelled wire	130	UEW	QA	MW75C
Polyester enamelled wire	155	PEW	QZ	MW5C
Polyester-imide enamelled wire	180	EIW	QZY	MW30C
Polyester-imide and polyamide-imide double coated enameled wire	200	EIWH (DFWF)	QZY/XY	MW35C
Polyamide-imide enamelled wire	220	AIW	QXY	MW81C

Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
2~3	11~13	0.5(max)	micro	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	0-45ºC
Resisivity at 20ºC	0.47±0.03ohm mm2/m
Density	8.44 g/cm3
Thermal Conductivity	-3~+20KJ/m·h·ºC
Temp Coefficient of Resistance at 20 ºC	-2~+2α×10^-6/ºC(Class0)
	-3~+5α×10-6/ºC(Class1)
	-5~+10α×10-6/ºC(Class2)
Melting Point	1450ºC
Tensile Strength(Hard)	635 Mpa(min)
Tensile Strength,N/mm2 Annealed,Soft	340~535
Elongation	15%(min)
EMF vs Cu, μV/ºC (0~100ºC)	1
Micrographic Structure	austenite
Magnetic Property	non
Micrographic Structure	Ferrite
Magnetic Property	Magnetic

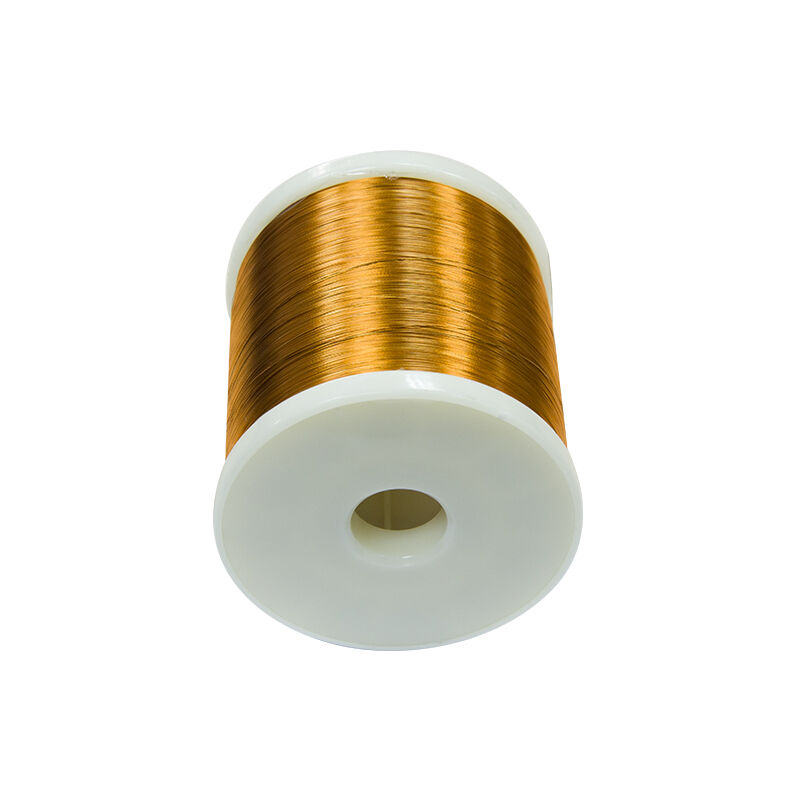

240 ℃ High Temperature Resistant Enameled Wire Manganin 6J12 Microfilament Copper Nickel Alloy Wire 0

240 ℃ High Temperature Resistant Enameled Wire Manganin 6J12 Microfilament Copper Nickel Alloy Wire 1

240 ℃ High Temperature Resistant Enameled Wire Manganin 6J12 Microfilament Copper Nickel Alloy Wire 2
