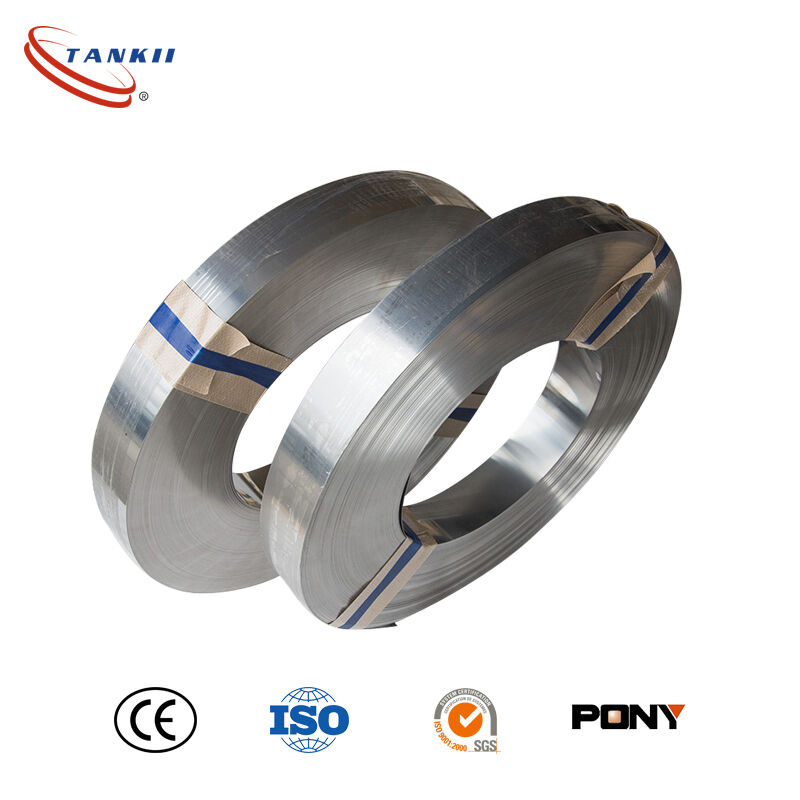

CuNi23 Resistance Strip Alloy 180 with Stable Resistance Characteristics Low Temperature Coefficient and Excellent Formability

Name: CuNi23 Resistance Strip Alloy 180 with Stable Resistance Characteristics Low Temperature Coefficient and Excellent Formability
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: CuNi23/Paduan180
Price: 35.00 USD
Availability: InStock

Rincian Produk

Tempat asal: Cina

Nama merek: Tankii

Sertifikasi: ISO 9001

Nomor model: CuNi23/Paduan180

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 10

Harga: dapat dinegosiasikan

Kemasan rincian: kayu+gulungan+kotak karton

Waktu pengiriman: 10-25 hari kerja

Syarat-syarat pembayaran: T/T, L/C, Western Union

Menyediakan kemampuan: 500t/tahun

Dapatkan Harga Terbaik

Hubungi sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:

Kelas Paduan:	CuNi23 / Paduan 180	Bahan:	Paduan Tembaga Nikel
Ketebalan:	0,02–3,0mm	Lebar:	2–300mm
Permukaan:	Terang	Kondisi:	Anil / Keras
Nilai Atribut Nama Produk Strip Resistansi CuNi23 Kelas Paduan CuNi23 / Paduan 180 Bahan Tembaga:	Strip / Foil	Standar:	GB, ASTM, DIN, Disesuaikan

Kelas Paduan:	CuNi23 / Paduan 180
Bahan:	Paduan Tembaga Nikel
Ketebalan:	0,02–3,0mm
Lebar:	2–300mm
Permukaan:	Terang
Kondisi:	Anil / Keras
Nilai Atribut Nama Produk Strip Resistansi CuNi23 Kelas Paduan CuNi23 / Paduan 180 Bahan Tembaga:	Strip / Foil
Standar:	GB, ASTM, DIN, Disesuaikan

Deskripsi

CuNi23 Resistance Strip Alloy 180 with Stable Resistance Characteristics Low Temperature Coefficient and Excellent Formability

CuNi23 Resistance Strip Alloy 180 for Shunt Resistor Manufacturing

Product Description

CuNi23 (Alloy 180) resistance alloy strip is a copper-nickel alloy with stable resistance characteristics, low temperature coefficient and excellent formability. It is widely used in precision resistors, shunt resistors, current sensing devices, measuring instruments and electronic components. The alloy offers reliable electrical performance and is suitable for applications requiring accurate and stable resistance values.

Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
23	0.5	-	-	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	250ºC
Resisivity at 20ºC	0.35%ohm mm2/m
Density	8.9 g/cm3
Thermal Conductivity	16(Max)
Melting Point	115ºC
Tensile Strength,N/mm2 Annealed,Soft	270~420 Mpa
Tensile Strength,N/mm2 Cold Rolled	350~840 Mpa
Elongation(anneal)	25% (Max)
Elongation(cold rolled)	2% (Max)
EMF vs Cu, μV/ºC (0~100ºC)	-25
Micrographic Structure	austenite
Magnetic Property	Non

CuNi23Mn Tradenames:
Alloy 180, CuNi 180, 180 Alloy, MWS-180, Cuprothal 180, Midohm, HAI-180, Cu-Ni 23, Alloy 380, Nickel alloy 180

CuNi23 Resistance Strip Alloy 180 for Shunt Resistor Manufacturing
