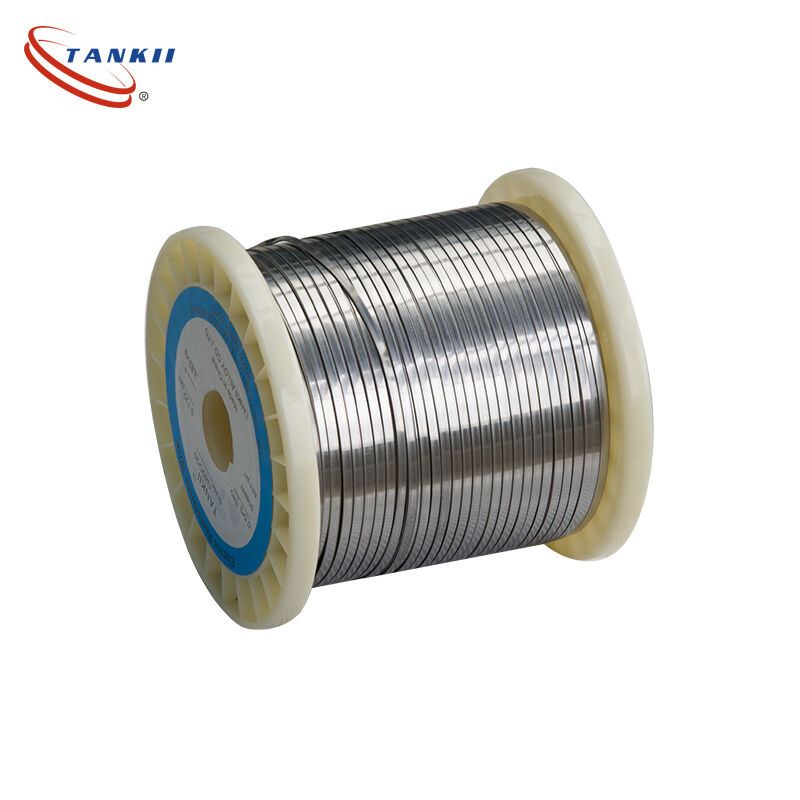

0.1*0.2mm CuNi44 Copper-Nickel Alloy Flat Wire for Under Floor Heating Cable - Low Resistance Heating Alloy

Name: 0.1*0.2mm CuNi44 Copper-Nickel Alloy Flat Wire for Under Floor Heating Cable - Low Resistance Heating Alloy
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Cuni44
Price: 31.00 USD
Availability: InStock

Rincian Produk

Tempat asal: CINA

Nama merek: Tankii

Sertifikasi: ISO9001

Nomor model: Cuni44

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 5kg

Harga: 25-37USD/KG

Kemasan rincian: Kasus

Waktu pengiriman: 10-15 hari

Syarat-syarat pembayaran: T/T, Western Union

Menyediakan kemampuan: 1000kg/bulan

Dapatkan Harga Terbaik

Hubungi sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                      CuNi44 copper-nickel alloy flat wire, 0.1mm x 0.2mm flat wire, CuNi44 alloy wire with warranty


Melayani:	Pesanan kecil diterima	Mencicipi:	Sampel tersedia
Tipe Konduktor:	Padat	Bahan Isolasi:	Telanjang
Aplikasi:	Pemanas Air, Pemanas, AC atau Kulkas, Tabung Air	Standar:	GB/T

Melayani:	Pesanan kecil diterima
Mencicipi:	Sampel tersedia
Tipe Konduktor:	Padat
Bahan Isolasi:	Telanjang
Aplikasi:	Pemanas Air, Pemanas, AC atau Kulkas, Tabung Air
Standar:	GB/T

Deskripsi

0.1*0.2mm CuNi44 Copper-Nickel Alloy Flat Wire for Under Floor Heating Cable - Low Resistance Heating Alloy

CuNi44 Alloy wire use for under floor heating cable.

Product Description
CuNi2 alloy wire: low resistance heating alloy is widely used in low-voltage circuit breaker, thermal overload relay, and other low-voltage electrical product. It is one of the key materials of the low-voltage electrical products. The materials produced by our company have the characteristics of good resistance consistency and superior stability. We can supply all kinds of round wire, flat and sheet materials.

Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
2	-	-	-	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	200ºC
Resisivity at 20ºC	0.05±10%ohm mm2/m
Density	8.9 g/cm3
Thermal Conductivity	100(max)
Melting Point	1280ºC
Tensile Strength,N/mm2 Annealed,Soft	140~310 Mpa
Tensile Strength,N/mm2 Cold Rolled	280~620 Mpa
Elongation(anneal)	25%(min)
Elongation(cold rolled)	2%(min)
EMF vs Cu, μV/ºC (0~100ºC)	-8
Micrographic Structure	austenite
Magnetic Property	Non

0.1*0.2mm CuNi44 Copper-Nickel Alloy Flat Wire for Under Floor Heating Cable - Low Resistance Heating Alloy 0

0.1*0.2mm CuNi44 Copper-Nickel Alloy Flat Wire for Under Floor Heating Cable - Low Resistance Heating Alloy 1

0.1*0.2mm CuNi44 Copper-Nickel Alloy Flat Wire for Under Floor Heating Cable - Low Resistance Heating Alloy 2
