Menyoroti:
T type thermocouple wire
, copper-constantan enameled wire
, medical thermocouple bare wire

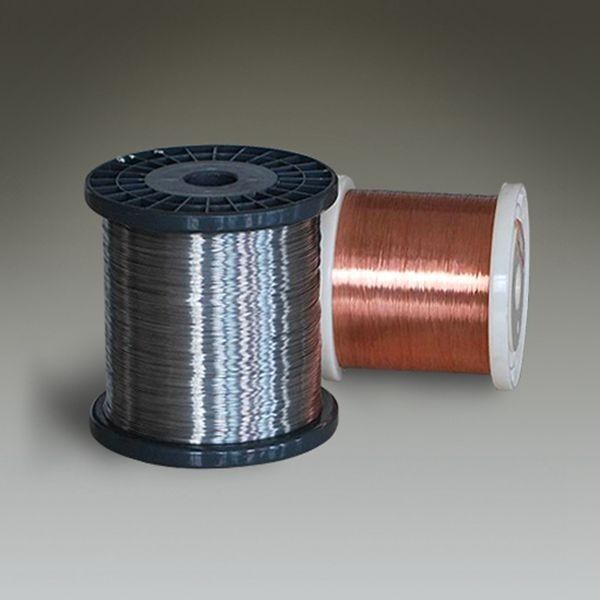

TANKII 0.08mm T Type Thermocouple Bare Wire Copper-Constantan Medical Grade High Accuracy Temperature Measurement
TANKII T Type (Copper-Constantan) 0.08mm Wire /Enameled Wire Used For Medical Area
Quick Details
T-type thermocouple ultra-thin wire is a fine thermocouple wire used for temperature measurement, featuring rapid response and high precision. The following is a detailed introduction:
Basic composition: T-type thermocouple ultra-thin wire consists of two metal wires of different materials, with the positive electrode being copper and the negative electrode being constantan (a copper-nickel alloy).
Performance characteristics:
1. High accuracy: The T-type thermocouple boasts industry-leading accuracy, with a special error limit of the larger of 0.5°C or 0.4%.
2. Fast response speed: The response time is typically only a fraction of a second, enabling rapid detection of temperature changes. It is suitable for applications that are sensitive to temperature variations.
3. Good flexibility: The wire is thin and flexible, making it easy to install in confined spaces or complex structures, and adaptable to various special measurement environments.
4. Non-magnetic: Type T thermocouple wires are non-magnetic and can be used in magnetic applications without interfering with measurement results.
5. Good linearity: Within the temperature range of -200℃ to 350℃, the thermoelectric potential exhibits an approximately linear relationship with temperature, simplifying the calibration process and reducing measurement errors.
Tankii 's Types of Thermocouples:
What differentiates one thermocouple from another is the metals in its two wires: the positive leg and the negative leg. Because each thermocouple type has a different pairing, they differ in temperature limits, process conditions (inert, oxidizing, reducing atmospheres, heavy vibration), and so on.
Thermocouple Types and Temperature Range
Conductor Name | Thermocouple Type | Grade | Temperature range ℃ | Allowable Tolerance /℃ |
| PtRh30-PtRh6 | B | Ⅱ | 600~1700 | ±0.25% t |
| Ⅲ | 600~800 | ±4 |
| 800~1700 | ±0.5%t |
| PtRh13-Pt | R | Ⅰ | 0~1100 | ±1 |
| 1100~1600 | ±[1+(t－1100) ×0.3％] |
| Ⅱ | 0~600 | ±1.5 |
| 600~1600 | ±0.25% t |
| PtRh10-Pt | S | Ⅰ | 0~1100 | ±1 |
| 1100~1600 | ±[1+(t－1100) ×0.3％] |
Ⅱ | 0~600 | ±1.5 |
| 600~1600 | ±0.25% t |
| NiCr-Ni | K | Ⅰ | -40~1100 | ±1.5℃ or ±0.4%t |
| Ⅱ | -40~1300 | ±2.5℃ or ±0.75%t |
| Ⅲ | -200~40 | ±2.5℃ or ±1.5%t |
| NiCrSi-NiSi | N | Ⅰ | -40~1100 | ±1.5℃ or ±0.4%t |
| Ⅱ | -40~1300 | ±2.5℃ or ±0.75%t |
| Ⅲ | -200~40 | ±2.5℃ or ±1.5%t |
| NiCr-CuNi (Constantan) | E | Ⅰ | -40~1100 | ±1.5℃ or ±0.4%t |
| Ⅱ | -40~1300 | ±2.5℃ or ±0.75%t |
| Ⅲ | -200~40 | ±2.5℃ or ±1.5%t |
| Fe-CuNi (Constantan) | J | Ⅰ | -40~750 | ±1.5℃ or ±0.4%t |
| Ⅱ | -40~750 | ±2.5℃ or ±0.75%t |
| Cu-CuNi (Constantan) | T | Ⅰ | -40~350 | ±0.5℃ or ±0.4%t |
| Ⅱ | -40~350 | ±1.0℃ or ±0.75%t |
| Ⅲ | -200~40 | ±1.0℃ or ±1.5%t |
The Delivery and Packing:
1. Packaging Details: on spool, or in coil, packed in carton case/ wooden case
2. Delivery Detail: 7 ~25 days, as the order quantity.
More pictures of thermocouple wire:
About us
Shanghai Tankii Alloy Material Co., Ltd. specialized in production of thermocouple wire, thermocouple cable, thermocouple connector, and other thermocouple products.
Based on the principle of “first quality, sincere service”, our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.
Our products, such us nichrome wire, nichrome strip, fecral wire, fecral strip, thermocouple wire, nickel wire, nickel strip have been exported to Europe, USA, India, Southest Asia, South America,etc.
We are willing to establish strong and long-time partnership with our customers
Welcome to call me or email to me for more info on thermocouple wire/rod/bar/strip.
