High Purity Pt90Ir10 Platinum Iridium Capillary Tube for Medical Catheter Applications

Name: High Purity Pt90Ir10 Platinum Iridium Capillary Tube for Medical Catheter Applications
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Pipa PT-IR
Price: 499.05 USD
Availability: InStock

Rincian Produk

Tempat asal: Shanghai, Tiongkok

Nama merek: TANKII

Sertifikasi: ISO 9001

Nomor model: Pipa PT-IR

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 200 buah

Harga: dapat dinegosiasikan

Kemasan rincian: kotak kayu

Waktu pengiriman: 7-20 hari

Syarat-syarat pembayaran: L/C, T/T, Western Union

Menyediakan kemampuan: 10 ton per bulan

Dapatkan Harga Terbaik

Hubungi sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                              Capillary PT-IR alloy tube, Medical catheter alloy tubing, Precision alloy capillary tube


Deskripsi

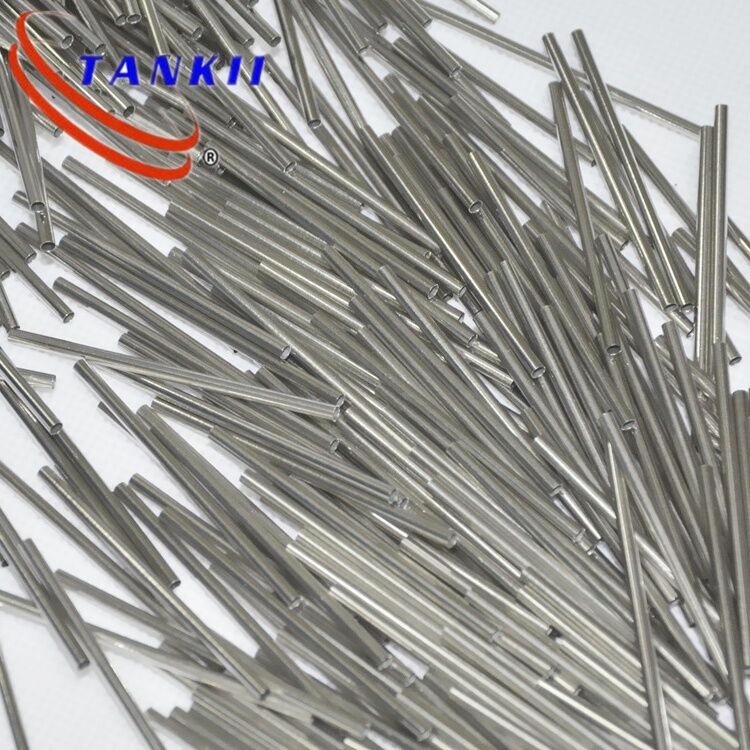

High Purity Pt90Ir10 Platinum Iridium Capillary Tube for Medical Catheter Applications

Platinum iridium tubes are mainly composed of platinum and iridium, which is chemically inactive and stable in air and humid environments. When heated below 450 ℃, a thin film of platinum dioxide forms on the surface, and can react with sulfur, phosphorus, and halogens at high temperatures. Platinum is insoluble in hydrochloric acid, sulfuric acid, nitric acid, and alkaline solutions, but soluble in aqua regia and molten alkali. Used in chemical, medical, cement, research university laboratories, for the preparation of high-temperature experimental carriers for anti-cancer drugs or medical devices.

Pt90lr10.

OD
mm

W.T. /mm

≥0.015

≥0.02

≥0.05

≥0.10

≥0.20

≥0.30

≥0.40

≥0.50

≥0.60

≥0.70

≥0.80

≥0.90

≥1.00

≥1.5

≥0.3

≥0.5

≥1.0

≥1.5

≥2.0

≥3.0

≥4.0

≥5.0

≥6.0

≥7.0

≥8.0

≥9.0

≥10.0

≥15.0

≥20.0

Material	Melting point (ºC)	Density (G/cm3)	Vickers hardnes Soft	Vickers hardnes Hard	Tensile force (MPa)	Resistivity (uΩ.cm)20ºC
Platinum (99.99%)	1772	21.45	40	100	147	10.8
Pt-Rh5%	1830	20.7	70	160	225	17.5
Pt-Rh10%	1860	19.8	90	190	274	19.2
Pt-Rh20%	1905	18.8	100	220	480	20.8
Platinum-Ir (99.99%)	2410	22.42
Pure Platinum-Pt (99.99%)	1772	21.45
Pt-Ir5%	1790	21.49	90	140	174	19
Pt-lr10%	1800	21.53	130	230	382	24.5
Pt-Ir20%	1840	21.81	200	300	539	32
Pt-lr25%	1840	21.7	200	300	238	33
Pt-Ir30%	1860	22.15	210	300	242	32.5
Pt-Ni10%	1580	18.8	150	320	441	32
Pt-Ni20%	1450	16.73	220	400	588	34.1
Pt-w%	1850	21.3	200	360	588	62
Applications: Gas sensors. Various sensors, medical components. Electric and heating probes, etc.
