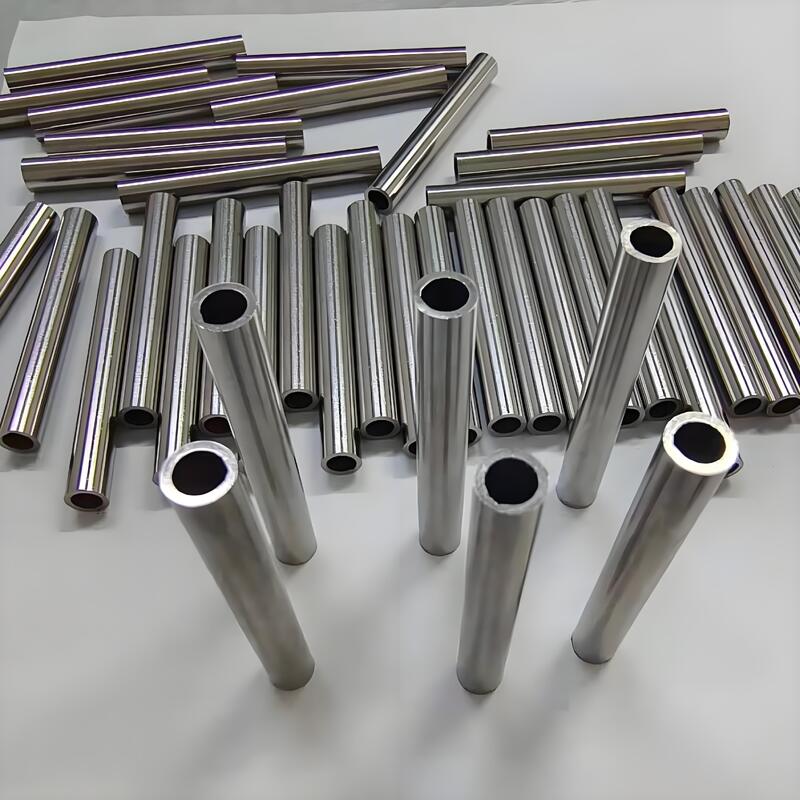

FeNi36 Invar Nickel Alloy Tube with 0.20 mm Min. OD Bright Surface Seamless Construction for Precision Instruments

Name: FeNi36 Invar Nickel Alloy Tube with 0.20 mm Min. OD Bright Surface Seamless Construction for Precision Instruments
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Invar 36
Price: 499.05 USD
Availability: InStock

Rincian Produk

Tempat asal: Shanghai, Tiongkok,

Nama merek: TANKII

Sertifikasi: ISO9001, SGS

Nomor model: Invar 36

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 10kg

Harga: dapat dinegosiasikan

Kemasan rincian: kotak kayu

Waktu pengiriman: 7-20 hari

Syarat-syarat pembayaran: L/C, T/T, Western Union

Menyediakan kemampuan: 100 Ton per bulan

Dapatkan Harga Terbaik

Hubungi sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                          0.20 mm Min. OD Nickel Alloy Tube, Bright Surface Invar Tube, Seamless Tube FeNi36 Tube


Model TIDAK.:	FeNi36	OD:	Minimal 0,20 mm.
WT:	MENIT 0,015 MM.	Panjang:	Minimal 0,20 mm.
Membentuk:	pipa koil; Pipa kapiler Tabung mulus	Permukaan:	Permukaan cerah
Mencicipi:	menerima pesanan kecil

Model TIDAK.:	FeNi36
OD:	Minimal 0,20 mm.
WT:	MENIT 0,015 MM.
Panjang:	Minimal 0,20 mm.
Membentuk:	pipa koil; Pipa kapiler Tabung mulus
Permukaan:	Permukaan cerah
Mencicipi:	menerima pesanan kecil

Deskripsi

FeNi36 Invar Nickel Alloy Tube with 0.20 mm Min. OD Bright Surface Seamless Construction for Precision Instruments

Invar is used where high dimensional stability is required, such as precision instruments, clocks, seismic creep gauges, television shadow-mask frames, valves in motors, and antimagnetic watches. In land surveying, when first-order (high-precision) elevation leveling is to be performed, the Level staff (leveling rod) used is made of Invar, instead of wood, fiberglass, or other metals. Invar struts were used in some pistons to limit their thermal expansion inside their cylinders.

Invar use oxyacetylene welding, electric arc welding, welding and other welding methods. Since the coefficient of expansion and chemical composition of the alloy is related should be avoided due to welding causes a change in the alloy composition, it is preferable to use Argon arc welding welding filler metals preferably contains 0.5% to 1.5% titanium, in order to reduce weld porosity and crack.

Controlled Expansion and Glass Sealing Alloys
German standard number	Tradename	DIN	UNS
1.3912	Alloy 36	17745	K93600/93601
1.3917	Alloy 42	17745	K94100
1.3922	Alloy 48	17745	K94800
1.3981	Pernifer2918	17745	K94610
2.4478	NiFe 47	17745	N14052
2.4486	NiFe47Cr	17745	-

Normal composition%

Ni	35~37.0	Fe	Bal.	Co	-	Si	≤0.3
Mo	-	Cu	-	Cr	-	Mn	0.2~0.6
C	≤0.05	P	≤0.02	S	≤0.02

Coefficient of expansion

θ/ºC	α1/10-6ºC-1	θ/ºC	α1/10-6ºC-1
20~-60	1.8	20~250	3.6
20~-40	1.8	20~300	5.2
20~-20	1.6	20~350	6.5
20~-0	1.6	20~400	7.8
20~50	1.1	20~450	8.9
20~100	1.4	20~500	9.7
20~150	1.9	20~550	10.4
20~200	2.5	20~600	11.0

Typical Physical properties

Density (g/cm3)	8.1
Electrical resistivity at 20ºC(OMmm2/m)	0.78
Temperature factor of resistivity(20ºC~200ºC)X10-6/ºC	3.7~3.9
*Thermal conductivity, λ/ W/(mºC)**	11
Curie point Tc/ ºC	230
Elastic Modulus, E/ Gpa	144

FeNi36 Invar Nickel Alloy Tube with 0.20 mm Min. OD Bright Surface Seamless Construction for Precision Instruments 0

FeNi36 Invar Nickel Alloy Tube with 0.20 mm Min. OD Bright Surface Seamless Construction for Precision Instruments 1
