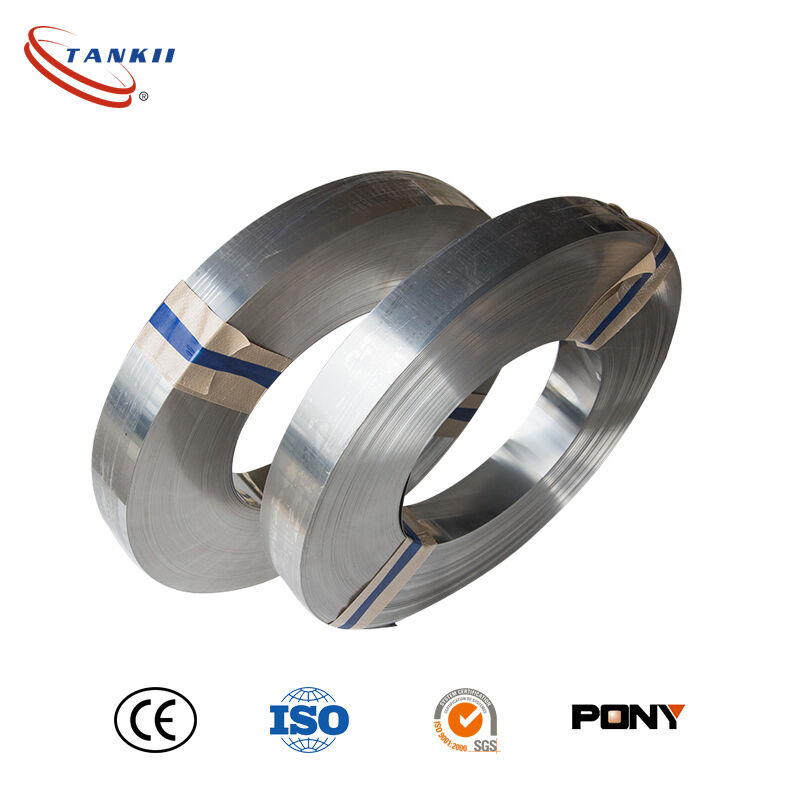

1J50 High Saturation Magnetic Induction Permalloy Ribbon Soft Magnetic Alloy Strip in Customized Size

Name: 1J50 High Saturation Magnetic Induction Permalloy Ribbon Soft Magnetic Alloy Strip in Customized Size
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: 1J79
Price: 499.05 USD
Availability: InStock

Rincian Produk

Tempat asal: Cina

Nama merek: Tankii

Sertifikasi: ISO9001 Rohs

Nomor model: 1J79

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 10KG

Harga: dapat dinegosiasikan

Kemasan rincian: kotak kayu

Waktu pengiriman: 15-25 hari

Syarat-syarat pembayaran: L/C, T/T, Western Union

Menyediakan kemampuan: 2000 Ton per tahun

Dapatkan Harga Terbaik

Hubungi sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              Permalloy ribbon soft magnetic alloy, Precision 1j22 permalloy strip, 1j79 high performance alloy ribbon


Nomor Model.:	1J79	permukaan:	Cerah / Dard
Spesifikasi:	Rohs, SGS	Kondisi:	Lembut/ keras
Paket Transportasi:	Inti Bagian Dalam, Kertas Tahan Air, Kotak Kayu	Kode HS:	722699900
Asal:	Cina	Ukuran:	Disesuaikan

Nomor Model.:	1J79
permukaan:	Cerah / Dard
Spesifikasi:	Rohs, SGS
Kondisi:	Lembut/ keras
Paket Transportasi:	Inti Bagian Dalam, Kertas Tahan Air, Kotak Kayu
Kode HS:	722699900
Asal:	Cina
Ukuran:	Disesuaikan

Deskripsi

1J50 High Saturation Magnetic Induction Permalloy Ribbon Soft Magnetic Alloy Strip in Customized Size

1J50 50Ni-Fe(Square Orthonol / Permenorm 5000 Z) Chemical Composition:(%)

Name

1J50 50Ni-Fe

(Permenorm 5000 Z)

49-51

Balance

0.30-0.60

0.15-0.30

≤0.03

Magnetic Properties (DC AC 50Hz)

Material

Saturation Induction

(at 80A/m)

Coercive Force

Initial Permeability

(at 0.4A/m)

Maximum Permeability

1J50 50Ni-Fe

(Permenorm 5000 Z)

1.5T

(15 000Gs)

≤9.60A/m (0.12Oe)

≥3.8mH/m

(3 040Gs/Oe)

≥62.5mH/m

(50 000Gs/Oe)

Physical Properties

Density	8.25 g/cm³
Electrical resistivity	0.47 Ohm mm²/ m
Melting point	1430°C
Curie temperature	485°C
Coefficent of Thermal Expansion(20-200°C)	8.4 · 10-6/K

1J50 50Ni-Fe(Square Orthonol / Permenorm 5000 Z) has rectangular hysteresis loop and high saturation magnetic induction, is mainly used to worked at a moderate magnetic field magnetic amplifier, choke ring, rectifier circle, as well as the computer device components.

Type	Class	Thickness or diameter, mm	The initial magnetic permeability		Maximum magnetic permeability		Coercive force		Technical saturation induction
			mH / m	G / E	mH / m	G / E	/	E	(10-4 G)
			No more				No more		No less
cold-rolled strips	1	0,05 0,08	2,5	2000	25	20000	20	0,25	1,50
		0,10 0,15	2,9	2300	31	25000	16	0,20
		0,20 0,25 0,27	3,3	2600	38	30000	12	0,15
		0,35 0,50	3,8	3000	44	35000	10	0,12
		0,80 1,0	3,8	3000	38	30000	12	0,15
		1,5 2,0 2,5	3,5	2800	31	25000	13	0,16
hot rolled sheets		3-22	3,1	2500	25	20000	24	0,30
Bars		8-100	3,1	2500	25	20000	24	0,30
cold-rolled strips	2	0,10 0,15	3,8	3000	38	30000	14	0,18
		0,20 0,25	4,4	3500	44	35000	12	0,15
		0,35 0,50	5,0	4000	56	45000	10	0,12
		0,80 1,0	5,0	4000	50	40000	10	0,12
		1,5 2,0	3,8	3000	44	35000	12	0,15
cold-rolled strips	3	0,05 0,10 0,20	12,5 *	10000 *	75	60000	4,0	0,05	1,52
