Permalloy FeNi80Mo5 1J85 Foil 0.02*200mm

Name: Permalloy FeNi80Mo5 1J85 Foil 0.02*200mm
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: 1j85
Price: 499.05 USD
Availability: InStock

Rincian Produk

Tempat asal: Cina

Nama merek: Tankii

Sertifikasi: ISO9001 Rohs

Nomor model: 1j85

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 10KG

Harga: dapat dinegosiasikan

Kemasan rincian: kotak kayu

Waktu pengiriman: 15-25 hari

Syarat-syarat pembayaran: L/C, T/T, Western Union

Menyediakan kemampuan: 2000 Ton per tahun

Dapatkan Harga Terbaik

Hubungi sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:

Nomor Model.:	79HMA	Kandungan karbon:	Rendah karbon
Titik Curie:	400	Resistivitas:	0,56
Kepadatan:	8.75	Koefisien magnetostriksi saturasi:	0,5
Paket Transportasi:	kotak kayu	Kode HS:	750522000

Nomor Model.:	79HMA
Kandungan karbon:	Rendah karbon
Titik Curie:	400
Resistivitas:	0,56
Kepadatan:	8.75
Koefisien magnetostriksi saturasi:	0,5
Paket Transportasi:	kotak kayu
Kode HS:	750522000

Deskripsi

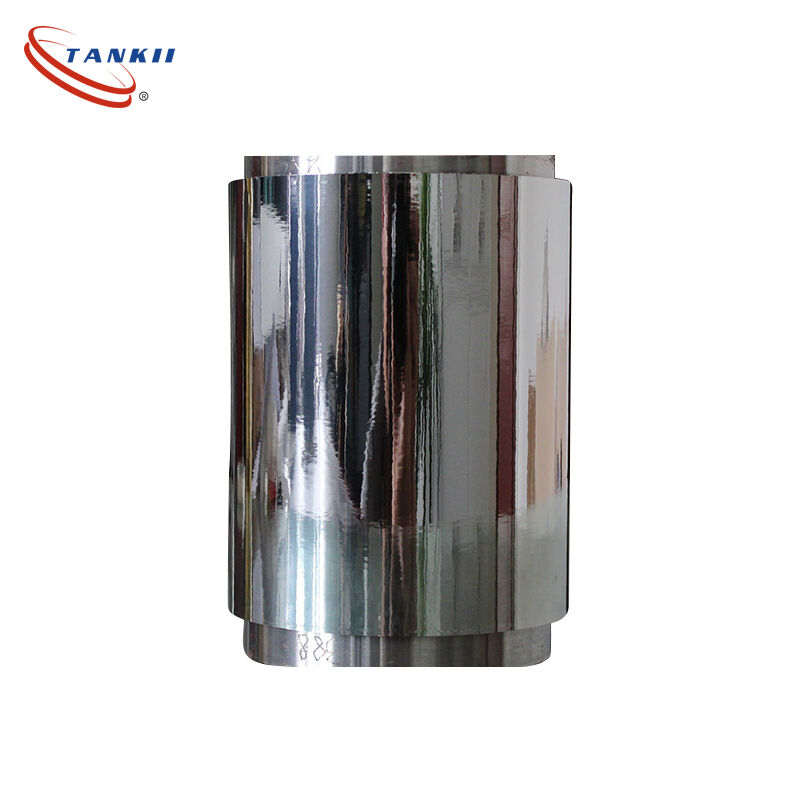

Permalloy FeNi80Mo5 1J85 Foil 0.02*200mm

Mainly used in two areas for energy conversion and information processing

In the power industry, mainly in the high magnetic field has a high magnetic induction and low core loss of the alloy. In the electronics industry, mainly at low or medium alloy having a high magnetic permeability and low coercive force. At high frequencies shall be made on a thin strip or alloy higher resistivity. Usually with sheet or strip.

Soft magnetic materials in exchange for use, due to the alternating magnetic eddy currents are induced inside the material, resulting in the loss, the smaller the resistance of the alloy, the greater the thickness, the higher the frequency of the alternating magnetic field, eddy current losses greater, magnetic reduce more. For this, the material must be made thinner sheet (tape), and the surface coated with an insulating layer, or the use of certain methods to the surface to form an oxide insulating layer, such alloys commonly used magnesium oxide electrophoresis coating.

Iron-nickel alloy mostly in the alternating magnetic field use, mainly for yoke iron, relay, Small Power Transformers and Magnetically shielded.

Chemical composition

composition	C	P	S	Mn	Si
	≤
Content(%)	0.03	0.02	0.02	0.3~0.6	0.15~0.3

composition	Ni	Cr	Mo	Cu	Fe
Content(%)	79.0~81.0	-	4.8~5.2	≤0.2	Bal

Heat treatment system

shop sign	Annealing medium	heating temperature	Keep the temperature time/h	Cooling rate
1j85	Dry hydrogen or vacuum, pressure is not greater than 0.1 Pa	Along with the furnace heating up 1100~1150ºC	3~6	In 100 ~ 200 ºC / h speed cooling to 600 ºC, fast to 300 ºC draw a charge

Permalloy FeNi80Mo5 1J85 Foil 0.02*200mm 0
